| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | NI-HSX-4A |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100set |
| Condition: | New | Machine Size: | Middle Size |
|---|---|---|---|
| After-Sales Service: | Overseas Service Center Available | HS: | 8479819000 |
| High Light: | pre-forming machine,coil winder machine |
||

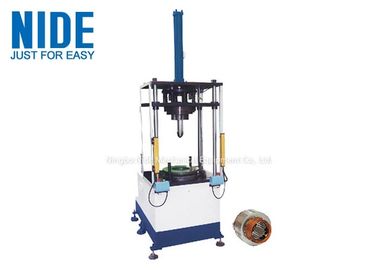

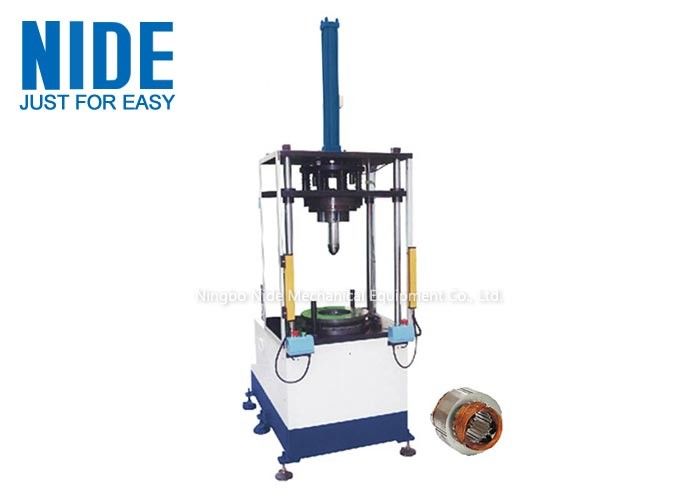

Automatic coil making machine , Stator Coil Pre - Forming Machine For Induction Motor
Quick Detail:
After coil insertion process, the upper and bottom side of coil will not be the same shape. Therefore, coil forming will be needed before next process. After forming, the coil will be expanding and easy for the next time insertion. Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
Technical data
| Stack height | 20-120mm |
| Max stator OD | 160mm |
| Stator ID range | ≥30mm |
| Displacement of cylinder | 30F |
| Power supply | 380V/50HZ |
| Power | 3KW |
| Dimension | 1300x630x2600mm |
| Weight | 800KG |
Application
Apply to multi-layer stator winding insertion.
Competitive advantages
Variety of application, easy operation.
We directly supply our machine to many countries.
We could customize machine for our customer.
Information needed for formng machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Stato winding drawing
4. Required productivity
5. Other technical requirement
If possible, it will be better if customer can send us samples.
