| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | Z3XL1-150-160C |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 900 sets per year |
| Name: | Small And Medium Motor Stator Coil Forming Machines | Machine Size: | Middle Size |
|---|---|---|---|
| After-Sales Service: | Overseas Service Center Available | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Condition: | New | Warranty: | 1 Year |
| Color: | Customized | Voltage: | 380V |
| High Light: | Motor Stator Coil Former Machine,Motor Coil Winding Machine 380V,Stator Coil Automatic Forming Machine |
||
Small and medium motor stator coil forming machine For Motor Manufacturing
The stator coil forming machine is suitable for forming the over-hang coil of the small and medium size stator , after the stator coil lacing process. Widely used in AC motors, air conditioner motors, compressor motors, fan motors, washing machine motors, pump motors, etc.
Feature
The stator coil forming and shaping machine is vertical design minimizes the space requirement.
Easy operation.
One set Mold is applicable to different stack height of stators.
Using upper, lower and center axis molds to complete the forming process.
Working principle
The stator is put on the left side of the roller to form up inner side of coil, then put the stator on the right side of forming die to form up height, inner and outer side of the coil finally to ensure the over-hang coil dimension would meet the required specification.
Technical Data:
| Product name: | Small and medium motor stator coil forming machine |
| Thickness of stator lamination: | 18mm-160mm |
| Stator ID : | Φ 30mm- Φ 120mm |
| Max outer diameter of stator: | Φ 200mm |
| Displacement of oil pump: | 20F |
| Input: | 380V /50Hz |
| Power: | 1.5KW |
| Machine productivity: | around 1500pcs/ 8hours |
| Dimension: | 650mm × 900mm × 2300mm |
| Weight: | ≈ 550kg |

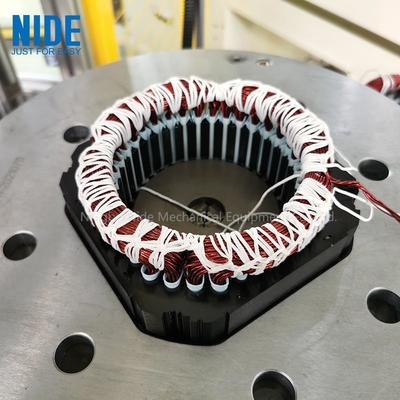

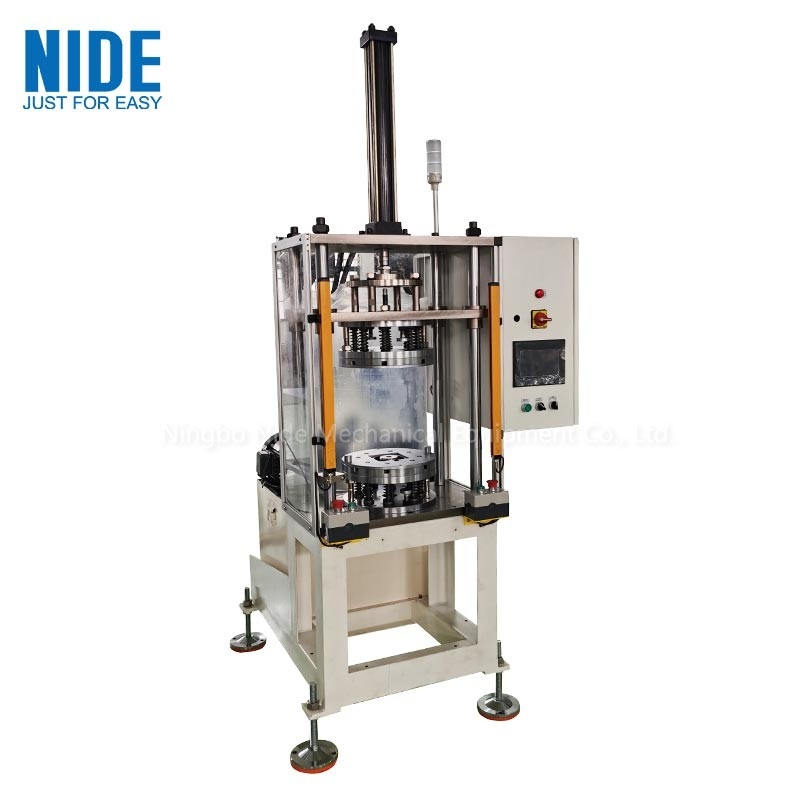

Picture show:
