| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | Z1XL1-200-210D |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 120 sets per year |
| Machine Size: | Small Size | HS: | 8479819000 |
|---|---|---|---|
| Customized Service: | Available | Working Station: | Single Working Station |
| After-sales Service Provided: | Video Technical Support | Warranty: | 1 Year |
| Color: | Customized | Voltage: | 380V |
| Power: | 1.5kw | Application: | Motor Manufacturing |
| Highlight: | Shaping Coil Forming Machine 380V,Automatic Forming Machine Motor Stator,Pump Stator Coil Winding Machine |
||

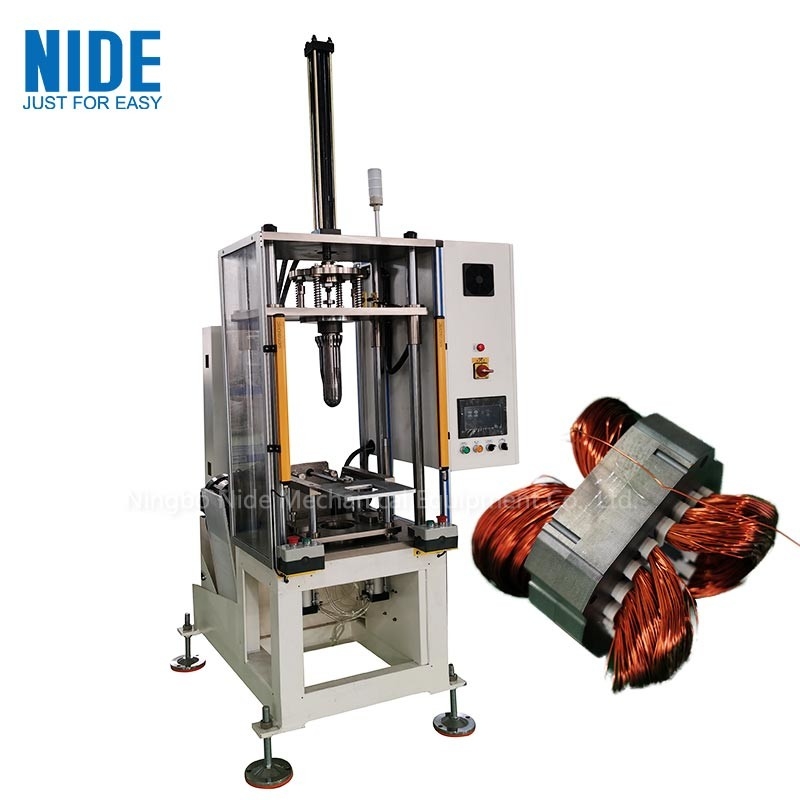

Semi Automatic Pump Motor Stator Coil Forming Shaping Machine
The pump motor stator coil forming shaping machine is suitable for forming the over-hang coil of the small and medium size stator , after the stator coil lacing process.
It is used for motor stator manufacturing.
Widely used in AC motors, air conditioner motors, fan motors, washing machine motors,compressor motors, pump motors, etc.
Technical data
| Product name: | Pump motor stator coil forming shaping machine |
| Stator ID: | 30~140mm |
| Stator OD: | Max. 210mm |
| Stack length: | 20~200mm |
| Height of coil: | 15~65mm |
| Displacement of cylinder: | 20F |
| Power: | 380V/50/60HZ 1.5KW |
| Dimension: | (L)920*(W)1120*(H)2500mm |
| Weight: | about 500kg |

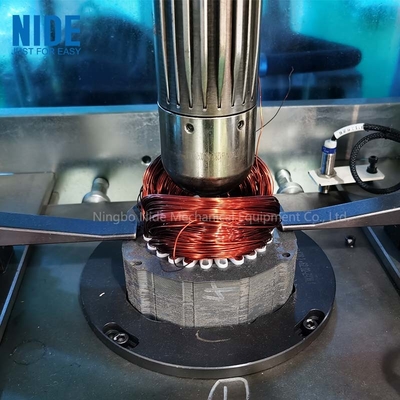

Picture show
