Long Stack Length Pump Stator Coil Forming Machine Horizontal Type

Long Stack Length Pump Stator Coil Forming Machine Horizontal Type

    • Long Stack Length Pump Stator Coil Forming Machine Horizontal Type
    • Long Stack Length Pump Stator Coil Forming Machine Horizontal Type
  • Long Stack Length Pump Stator Coil Forming Machine Horizontal Type

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: CE
    Model Number: Z3XW2-400/350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case suitable for sea transportation
    Delivery Time: 60 working days
    Payment Terms: T/T, L/C
    Supply Ability: 100set per year
    Contact Now
    Detailed Product Description
    Type: Coil Forming Machine Application: Motor Stators
    Working Station: Single Working Station Machine Size: Middle Size
    Customized Service: Provided Certificate: CE
    High Light:

    coil winder machine

    ,

    wire winding machine

    Long Stack Length Pump Stator Coil Forming Machine Horizontal Type





    (1) Machine mainfunction and characteristic
    This stator coil forming machine is horizontal type so as to easily load and unload stator. It is driven by hydraulic system, and controlled by PLC. It expands the inner of the over-hang during forming process; it effectively ensures the over-hang dimension and the appearance.



    During tooling change, just change the block, inner expansion core and upper stator fixing sleeve. The core adopts quick release structure. For the block and upper stator fixing sleeve, it can be quickly changed by loosening the related screws. When change different stack stator, loosen related screws, then drive the gear and rack by handle. After adjustment, tighten the screws.





    (2) Main technical data

    Stator OD ≤φ350mm
    Stator ID φ80-φ230mm
    Stack Height 100mm-400mm
    Displacement of Cylinder 30L/min
    Power supply 380V 50/60Hz
    Weight about 1800Kg
    Dimension 2550×1930×2200mm





    (3) Application
    This forming machine is applied to deep water pump motor and other various type of overlength motor stator.





    (4) Competitive advantages

    Variety of application, easy operation.

    We have Overseas Service Center.

    It is suitable for rotor or stator with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    This machine is controlled by PLC. All the parameter could be set on the touch screen,

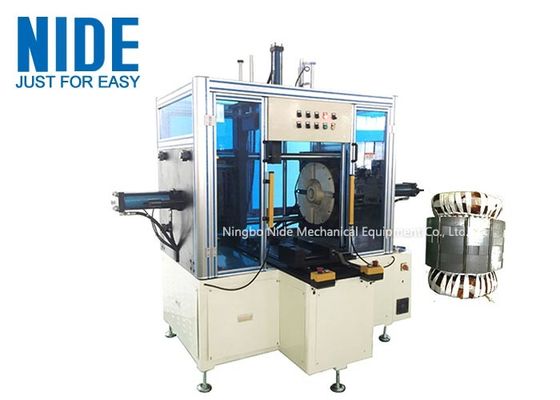

    Stator coil forming machine working station

    winding forming machine
