| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | CCC |
| Model Number: | NI-HSX-4B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 set per year |
| Machine Color: | As Per Customer Requirement | After-Sales Service: | Overseas Service Center Available |
|---|---|---|---|
| Machine Size: | Middle Size | Certificate: | CCC |
| Highlight: | pre-forming machine,coil winder machine |
||
(1)Machine main function and characteristic

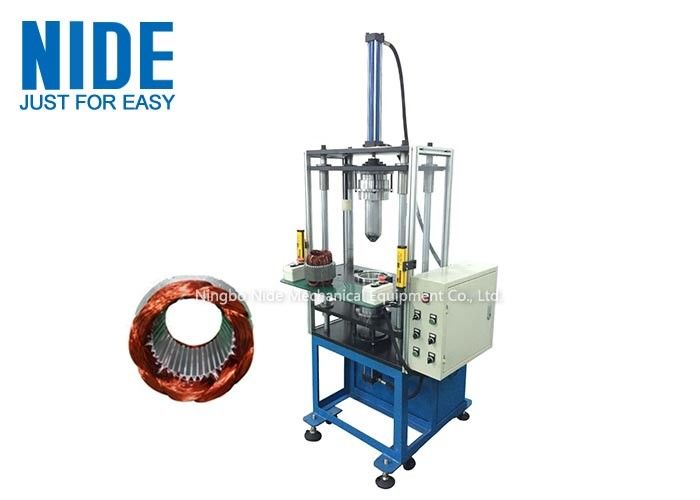

This stator forming machine adopts whole hydraulic system and PCL program.This machine can adjust the forming stack length by changing washer. This machine adopts safety grating protection system. Operator need to stand when operating.Machine adopts two hands simultaneously start button to ensure safety. After forming, there is no copper wire enamel broken or wire snap. and coil OD and ID is close to the final forming dimension. Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
(2) Technical data
| Stack height | 20-120mm |
| Max stator OD | 160mm |
| Stator ID range | 30-100mm |
| Displacement of cylinder | 30F |
| Power supply | 380V/50HZ |
| Power | 3KW |
| Dimension | 1300x750x2600mm |
| Weight | 700KG |
(3) Application
It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.
(4) Competitive advantages
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries
