|Place of Origin:||China|
|Minimum Order Quantity:||1 pc|
|Packaging Details:||Wooden case suitable for sea transportation|
|Delivery Time:||60 working days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||600 sets per year|
|Machine Color:||RAL9010 Or As Per Customer Requirement||After-Sales Service:||Overseas Service Center Available|
|Machine Size:||Middle Size||Certificate:||CCC|
|HS Code:||8479899990||Head Coil Height:||50mm|
stator lacing machine,
automatic winding machine
Automatic Lacing Machine Double Side Stator Coil End Motor Winding Machine
This stator coil end lacing machine adopts vertical loading structure, It is equipped with two needles, each needle for laing each side of stator coils. The needle movement is controlled by servo drive system to complete the lacing work. Main spindle speed is adjustable. The lacing type, lacing slot by slot, interval slot lacing and fancy lacing can be set inthe Industrial programmable PLC and HMI. This lacing machine is suitable for lacing multi-species, less yield or more lead wire stator. It has a mature and advanced technology; the machine quality is reliable; and it is easy to operate and maintain.
This stator coil lacing machine is appropriate for micro induction motor like conditioner motor, washer motor, compressor motor, fan motor, alternator motor, pump motor etc.
Lacing machine technical data
|Power||380V/50Hz three phase four wire power|
|Working pitch time||S/PC||≤14(24 Slots)|
|Head coil height||mm||50|
Fast speed , low noise; simple operation and easy tooling change, double sides lacing simultaneously. PLC and touch screen control, it's programmable.
Connect lacing machine to power source and air source. Do threading.
Put the stator in the tooling.
Switch to "auto" mode. Then press "start" button by two hands.
Machine will automatically do the lacing process.

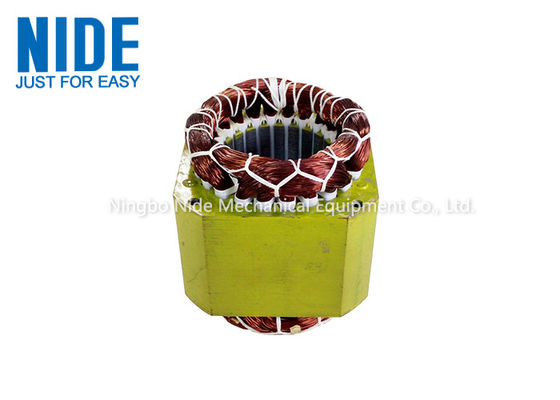

Stator samples after lacing
