Programmable automatic stator end coil lace machine Single working station

Programmable automatic stator end coil lace machine Single working station

    • Programmable automatic stator end coil lace machine Single working station
    • Programmable automatic stator end coil lace machine Single working station
    • Programmable automatic stator end coil lace machine Single working station
    • Programmable automatic stator end coil lace machine Single working station
  • Programmable automatic stator end coil lace machine Single working station

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: None
    Model Number: BXIL1-100-135

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: Wooden case suitable for sea transportation
    Delivery Time: 45 working days
    Payment Terms: T/T, L/C
    Supply Ability: 500 sets per year
    Contact Now
    Detailed Product Description
    Machine Size: Middle Size Certificate: CCC
    Customized Service: Available HS Code: 8479819000
    Working Station: Single Working Station After-Sales Service: Overseas Service Center Available
    Machine Color: RAL9010 Or As Per Customer Requirement
    High Light:

    stator lacing machine

    ,

    motor winding machine



    Programmable automatic stator end coil lace machine Single working station

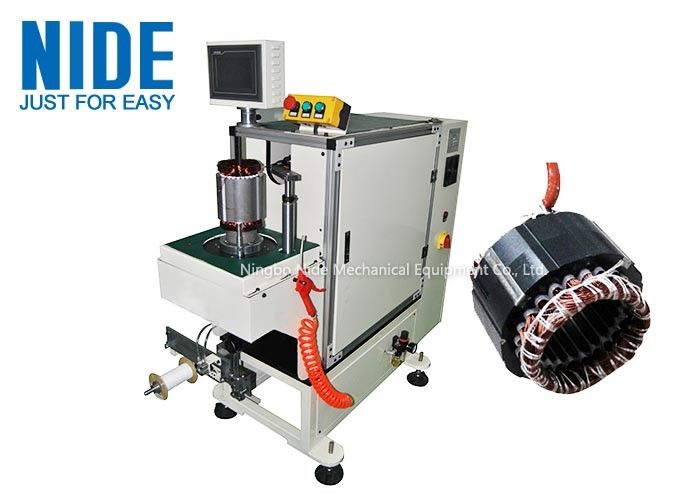

    This stator coil end lacing machine is especially applied to multi sizes, low output or more lead stator winding lacing. Stator is loaded on this coil lacing machine vertically. The lacing wokring process, such as single-needle and single-side automatic lacing; needle transpositioning, hooking, are all controlled by servo system. Machine is PLC programming, with an inverter drive and can be fully programmed to suit different stator slot configurations. The lacing type, like slot by slot lacing, intercal lacing, and fancy lacing could be set in the touch srceen.



    Machine speicification:

    Stator ID φ35-φ120
    Statro OD less than 190mm
    Stator lamination height 40-160mm
    Max winding height 60MM
    Lacing speed 0.8S/slot
    Lacing mode slot by lsot/interval slot/fancy lacing
    Power 3800V 50-60HZ
    Air pressure >0.4mpa
    Weight 450KG
    Dimension 1000x600x1300


    Applications:
    This machine is suitable for stator used in induction motor industry. This lacing manchine is especially applied to multi sizes, low output or more lead stator winding lacing.




    Information needed for stator lacing machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Stator winding drawing
    4.Winding drawing
    5. Other technical requirement

    If possible, it will be better if customer can send us samples.



    Competitive advantages:
    1. This machine is PLC programming.
    2. Machine Model number: BXIW1-260/300.
    3. The tooling is movable, and convenient for stator fast laoding and unloading.
    4. This machine is horizontal frame-structure.
    5. The stator OD ranges from 175~300mm.

    6. The tooling is movable, and convenient for stator fast laoding and unloading.





    The stator coil lacing machine working process

    Programmable automatic stator end coil lace machine Single working station 0Programmable automatic stator end coil lace machine Single working station 1



    Stator made by this lacing machine

    Programmable automatic stator end coil lace machine Single working station 2

    Programmable automatic stator end coil lace machine Single working station 3
