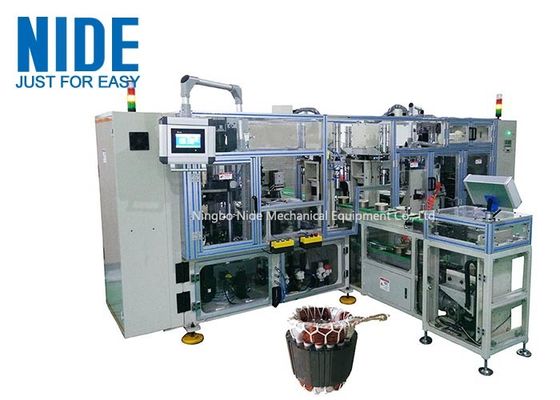

Conveyor type automatic stator coil lacing machine with Four station

Conveyor type automatic stator coil lacing machine with Four station

    • Conveyor type automatic stator coil lacing machine  with Four station
    • Conveyor type automatic stator coil lacing machine  with Four station
    • Conveyor type automatic stator coil lacing machine  with Four station
  • Conveyor type automatic stator coil lacing machine  with Four station

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: None
    Model Number: BXSIIL4-160/160

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case suitable for sea transportation
    Delivery Time: 60 working days
    Payment Terms: T/T, L/C
    Supply Ability: 100set per year
    Contact Now
    Detailed Product Description
    Condition: New Type: High Automation
    Working Station: Four Pitch Time: Less 14s/pc(24 Slots)
    Weight: ≈1500Kg Dimension: (L)2000×(W)1100×(H)1900mm
    High Light:

    motor winding machine

    ,

    automatic winding machine



    Conveyor type automatic stator coil lacing machine with Four station



    This lacing machine is equipment with a conveyor which can be used to transfer the stators. Due to the four working station, this lacing machine is of great automation. During lacing process, operator load the stators, then the machine will automatically do the lacing process. It is conrolled by PLC, and all the parameter can be displayed and set in the touch screen. The machine can store different stator parameter.

    Technical data of lacing machine

    Stator OD φ40-φ160mm
    Stator ID ≤100mm
    Stack Height 30-160mm
    Height of Coil ≤65mm
    Pitch time ≤14s/pc(24 slots)
    Air Pressure 0.4-0.6MPa
    Power supply 380V 50/60Hz 6Kw
    Weight ≈1500Kg
    Dimension (L)2000×(W)1100×(H)1900mm


    Application
    It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

    Machine main function and characteristic
    This machine adopts turntable plates structure with four working station, equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and ect. Overhang winding adopts twin needle lacing simultaneously. Needle transpositioning, hooking and stator indexing are controlled by five spindle servo system.
    Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing. With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.



    The working station of this lacing machine

    Conveyor type automatic stator coil lacing machine  with Four station 0



    Stator made by this machine

    Conveyor type automatic stator coil lacing machine  with Four station 1Conveyor type automatic stator coil lacing machine  with Four station 2
