Automatic Industry Motor Rotor Die Casting Machine 60T Customized

Automatic Industry Motor Rotor Die Casting Machine 60T Customized

  • Automatic Industry Motor Rotor Die Casting Machine 60T Customized
  • Automatic Industry Motor Rotor Die Casting Machine 60T Customized
Automatic Industry Motor Rotor Die Casting Machine 60T Customized
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CCC
Model Number: ND-100TF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: wooden case suitable for sea transportation
Delivery Time: 50 working days
Payment Terms: L/C, T/T
Supply Ability: 40 sets per year
Contact Now
Detailed Product Description
Name: Industry Motor Rotor Die Casting Machine 60T Function: Cast Aluminum
Station: 4 Color: Customized
Type: Fully Automatic Application: Motor Armature Rotor Manufacturing
High Light:

Industry Motor Rotor Die Casting Machine

,

60T Customized Die Casting Machine

,

Automatic Rotor Casting Machine

Automatic Industry Motor Rotor Die Casting Machine 60T Customized



Automatic aluminum rotor die casting machines are used in a variety of industries, including automotive, aerospace, electric motors , generators and industrial manufacturing, etc. Rotor die casting machines allows for the production of rotors with precise dimensions, high strength, and excellent mechanical properties. This makes them suitable for use in demanding applications where reliability and performance are critical.



Our aluminum rotor die casting machines are highly automated and can produce large quantities of high-quality rotors with consistent quality and dimensional accuracy. High-quality, and cost-effective aluminum rotors will make them a critical component of the manufacturing process in many industries.



The automatic aluminum rotor die casting machine typically consists of a furnace for melting the metal, a holding furnace for maintaining the molten metal at a constant temperature, a die-casting machine for injecting the molten metal into the mold, and a cooling system for solidifying the metal once it has been cast.



Aluminium Rotor Die-Casting Line Application

The aluminium rotor die-casting line is suitable motor aluminium rotor manufacturing. Especially suitable for induction motors, brushless motors, synchronous motors, permanent magnet motors, compressors, washing machines, etc.



Aluminium Rotor Manufacturing Process

Manually loose lamination weighing→ Putting truss into turntable→ Robot loading→ Into tooling→ Die-casting→ Casted rotor out of tooling→ Putting into integrated machine→ Weighing, marking codes, inspecting and stamping→ Putting into pressing machine→ False shaft pulling out→ Oil spraying→ Pick and load real shaft→ Putting pressure head→ Pressing real shaft→ Taking out pressure head→ Unload rotor to finished box

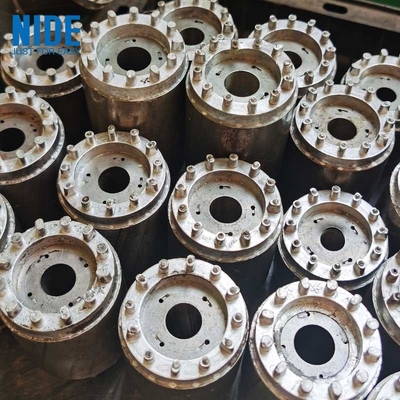

Automatic Industry Motor Rotor Die Casting Machine 60T Customized 0

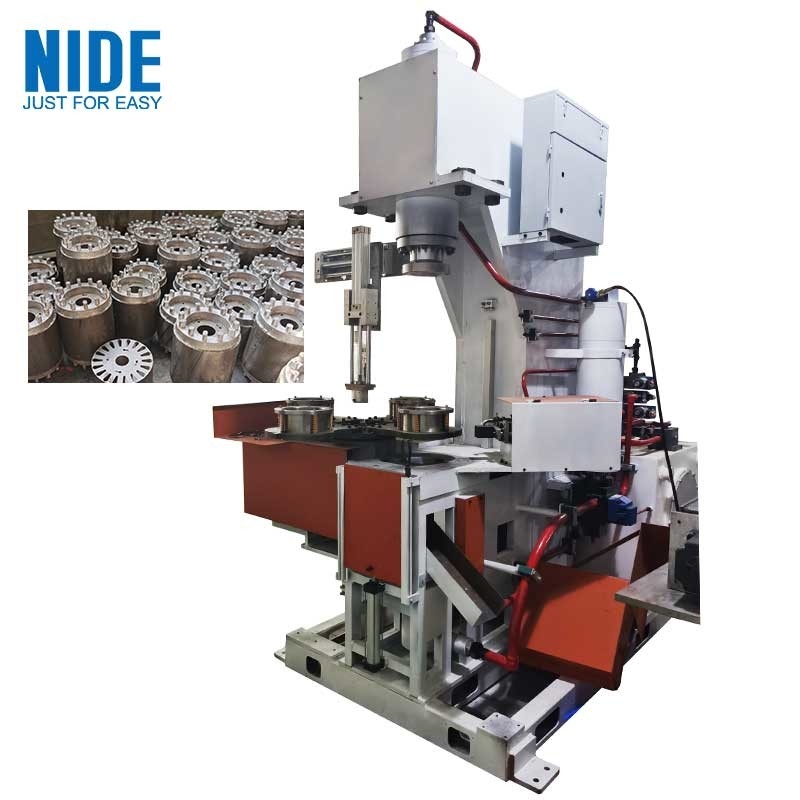

Automatic Industry Motor Rotor Die Casting Machine 60T Customized 1

AluminIum Rotor Die Casting Line Technical Parameters

一,Specification
No. Item Unit 100T specification
1,Main cylinder:
1 main cylinder mold lock force KN 630
2 main cylinder mold lock travel mm 400
2,Injecting cylinder:
1 Injecting cylinder travel mm 150
2 Injecting cylinder injecting force KN 400
3 Injecting force(Min-Max) KN 70-400
4 capacity L 25
5 aluminum depot OD(Max) mm 100
6 punching head OD(Max) mm 100
7 aluminum depot capacity(Max) kg 2
8 Injection punching head travel distance mm 60
9 cycle time s 15-20
10 Rotor OD mm Max 100
11 Rotor stack height mm Max 100
3,Motor and pump:
1 Pump motor power KW 7.5+7.5
2 Divider motor powder KW 1.5
3 Oil pump (plunger pump) L 40Y+40Y
4,Machine dimension:
1 Main frame(L*W*G) mm 2000*2100*2700
2 assembly of oil tank and electric appliance(L*W*G) mm 2100*1500*1500
3 turntable OD mm 1000
5,Cooling pump specification:
1 Submersible pump power KW 1.5
2 Submersible pump rate of flow M3/H 5
3 Submersible pump water pressure MPa 0.4
Remark: the max pressure of this machine is 25Mpa / Submersible pump power 220/380V Option

Automatic Industry Motor Rotor Die Casting Machine 60T Customized 2
