Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CCC |
Model Number: | ND-100TE |
Minimum Order Quantity: | 1set |
---|---|
Price: | negotiable |
Packaging Details: | wooden case suitable for sea transportation |
Delivery Time: | 50 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 40 sets per year |
Name: | Ceiling Fan Motor Rotor Die Casting Machine | Function: | Aluminum Die Casting |
---|---|---|---|
Station: | 4 | Color: | Customized |
Usage: | Motor Rotor Manufacturing | Warranty: | 1 Year |
Power Supply: | 380V Or Custom | Application: | Electric Motor, Induction Motor, BLDC Motor |
Highlight: | Ceiling Fan Motor Die Casting Machine,Aluminum Rotor Die Casting Machine,380V Rotor Casting Machine |

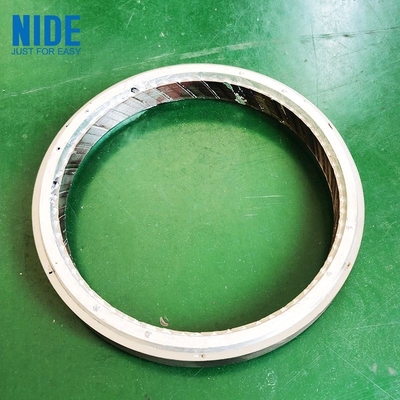

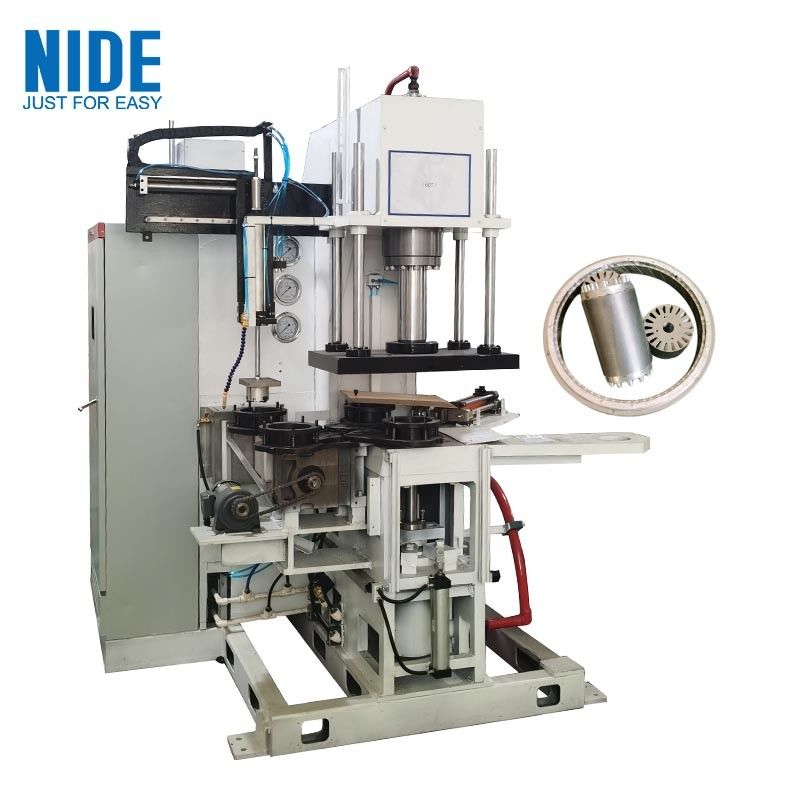

Automatic Ceiling Fan Motor Aluminum Rotor Die Casting Machine
Our automatic rotor aluminum die casting machine can help to produce high-quality ceiling fan motor rotors quickly and efficiently, with consistent results. This can help to keep the manufacturing costs of ceiling fans low while ensuring that they function reliably and efficiently.
This rotor automatic centrifugal aluminum casting machine adopts four-station casting to improve production efficiency.
The whole process is automated, reducing labor costs, only one operator required. Automatic get aluminium melt liquid, automatic loading and unloading the rotor, oven heating, manipulator reclaiming, four-station aluminum casting station, manipulator discharging, cooling assembly line, shaping station, discharging platform, automatic recycling and reuse of aluminum scraps.
Safe and simple operation, it is very easy for operator to run the automatic centrifugal aluminum casting machine, operator only need to press "start" button, no need to handling the heavy tooling which might occur body injury, and the machine has aluminium anti spatter design to prevent the aluminium liquid from spraying and cause injury
Rotor Die Casting Machines Feature
Safe and simple operation, it is very easy for operator to run the automatic centrifugal aluminum casting machine, operator only need to press "start" button, no need to handling the heavy tooling which might occur body injury, and the machine has aluminium anti spatter design to prevent the aluminium liquid from spraying and cause injury.
Healthy, our rotor aluminum casting machine doesn't need asbestine cup to keep the temperature and demould.
Power saving, and tooling cost is much less and fast tooling changeover.
Rotor loading: automatic pneumatic circularly pick up.
Get aluminium melting liquid: servo motor control the mechanical arm, control the liquid volume through human-machine interface.
Automatic cut the waste material, automatic recycle the cut wasted material and convey it to the furnace by the conveyor.
Automatic feed mold releasing agent, the feeding time and times can be set.
There is water cooling channel, helpful for reducing the mold temperature effectively.
Setting on touch screen: forward and backward speed, stroke, swing angle of the mechanical arm, loading speed,etc.
Machine will alarm and stop working if out of material.
Failure will be automatic displayed and machine will alarm.
Product Name: | Fully Automatic Electric Motor Aluminum Rotor Die Casting Machine |
Die Casting Stations: | 4 Working Stations |
1,Main cylinder: |
1main cylinder mold lock forceKN500 2main cylinder mold lock travel mm400 |
2,Injecting cylinder: |
1Injecting cyliner travel mm150 2Injecting cylinder injecting force KN300 3Injecting force(Min-Max)KN70-300 4capacityL20 5aluminum depot OD(Max)mm75-90 6punching head OD(Max)mm75-90 7aluminum depot capacity(Max)kg1.8 8Injection punching head travel distancemm55 9cycle times15-20 10Rotor ODmmMax 85 11Rotor stack heightmmMax 90 |
3,Motor and pump: |
1Pump motor powerKW7.5 2Divider motor powderKW0.75 3Oil pump (plunger pump)L40Y |
4,Machine dimesion: |
1Main frame(L*W*G)mm1800*1800*2500 2assembly of oil tank and electric appliance(L*W*G)mm1500*1000*900 3turntable ODmm1000 |
5,Cooling pump specification: |
1Submersible pump powerKW1.5 2Submersible pump rate of flowM3/H5 3Submersible pump water pressureMPa0.4 |
Remark: the max pressure of this machine is 25Mpa / Submersible pump power 220/380V Optiona |
