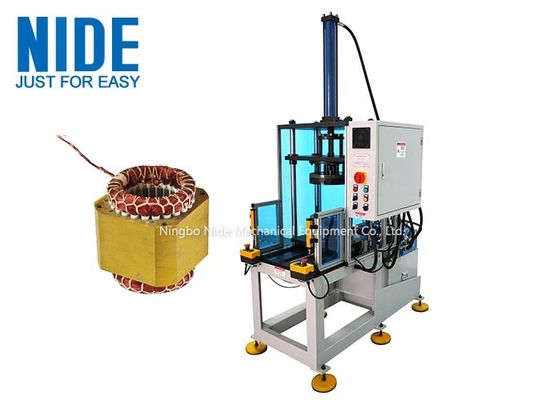

Automatic Highly Efficiency and Qualified Stator Coil Forming Machine

Automatic Highly Efficiency and Qualified Stator Coil Forming Machine

  • Automatic Highly Efficiency and Qualified Stator Coil Forming Machine
  • Automatic Highly Efficiency and Qualified Stator Coil Forming Machine
Automatic Highly Efficiency and Qualified Stator Coil Forming Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: Z3XL1-175/120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 70 sets per year
Contact Now
Detailed Product Description
Name: Stator Coil Final Forming Machine Color: Customaized
Condition: New Stator I.D: 50~100mm
Weight: 700Kg Dimension: 650*900*2300mm
High Light:

coil winder machine

,

wire winding machine

Automatic Highly Efficiency and Qualified Stator Coil Forming Machine





Quick Detail:

1. Model No.:Z3XL1-175/120
2. This machine is used for stator coil final forming,
3. it is driven by the hydraulic system
4. It is controlled by the PLC.
5. It is of highly efficiency and qualified forming.




Technical parameter:

Stator I.D

50~100mm

Stator O.D

≤160mm

Stack height

16~100mm

Displacement of cylinder

20F

Power supply

380V/50/60Hz 1.5KW

Weight

700Kg

Dimension

650*900*2300mm





Description:

Stator Coil Final Forming Machine is used for stator coil final forming, it is driven by the hydraulic system, controlled by the PLC. Its tooling design adopts flexible principles of inner expansion. The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing. It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.

Required information for quotation: stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.





Competitive advantages:

It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.

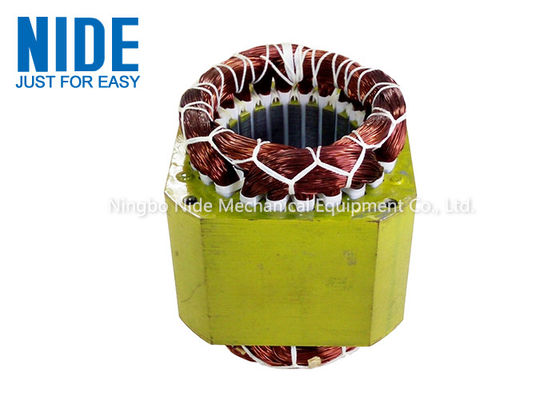

Stator coil final forming diagram:



Automatic Highly Efficiency and Qualified Stator Coil Forming Machine 0
