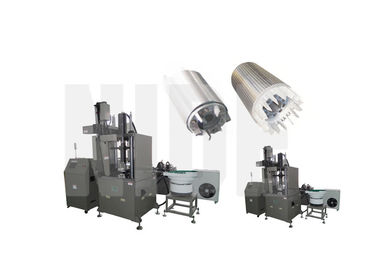

High efficiency Rotor Casting Machine / Automatic Aluminum Die-casting Equipment

High efficiency Rotor Casting Machine / Automatic Aluminum Die-casting Equipment

  • High efficiency Rotor Casting Machine /  Automatic Aluminum Die-casting Equipment
  • High efficiency Rotor Casting Machine /  Automatic Aluminum Die-casting Equipment
High efficiency Rotor Casting Machine /  Automatic Aluminum Die-casting Equipment
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: YZJL1-100(100)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
High Light:

automatic casting machine

,

rotor die casting machines



High efficiency Rotor Casting Machine /  Automatic Aluminum Die-casting Equipment



Quick Detail:

1. This machine has 4 working station.
2. This machine is used for producting cast-aluminum rotor.
3. It has somk-sucking system.
4. It saves labor cost.
5. high efficiency and low tooling cost.

Technical parameter:

Rotor O.D

40~80mm

Rotor stack length

16~100mm

Pitch time

less than 8s

Upper presser operation pressure

40T

Bottom presser operation pressure

12T

Max die-casting volume

0.6Kg

Fuel tank capacity

425L

Injection piston running speed

slow injection-190mm/s, fast injection-600mm/s

Motor power of 40L Variable piston hydraulic pump

7.5kw

Max. operation pressure

22.6MPa

Machine Dimension

1800(L)X1800(W) X 2350(H)mm

Total Power

about 8.5Kw

Description:

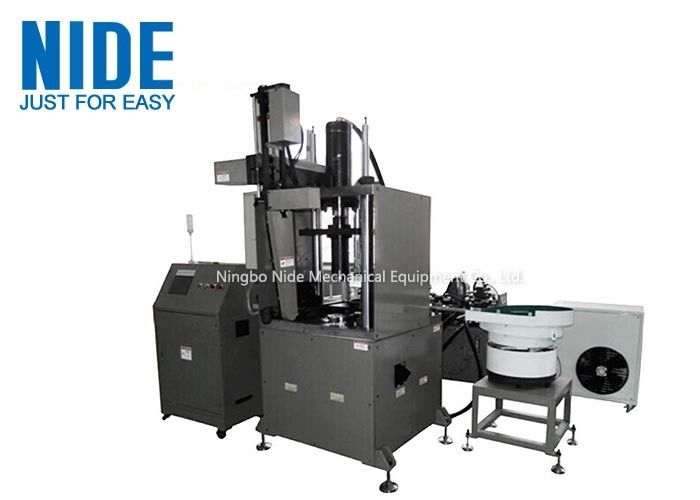

It is 4 working station rotay plate. Mechanical arm takes and puts self-rivet rotor core in the loading station, and then operator injects liquid aluminum in the casting station, which has somke-sucking system, auto releasing agent spraying system and cooling system, aluminum scraps come back to the aluminum melt oven. It owns the merit of saving labor cost, high efficiency and low tooling cost etc.

This kind of Aluminium Rotor Die-casting Machine is used for producing cast-aluminum rotor. It is high efficient with 4 working stations. Automatic Rotor Die Casting machine, aroun 8s/ pc, scrap automatic recycling.

Competitive advantages:

It owns the merit of saving labor cost, high efficiency and low tooling cost etc.



Aluminum Armature Die-casting Machine
