Power Tool Motor Rotor Casting Machine With 4 working station rotay plate

Power Tool Motor Rotor Casting Machine With 4 working station rotay plate

  • Power Tool Motor Rotor Casting Machine With 4 working station rotay plate
Power Tool Motor Rotor Casting Machine With 4 working station rotay plate
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: ND-ZL4080
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
High Light:

aluminium die casting machine

,

rotor die casting machines

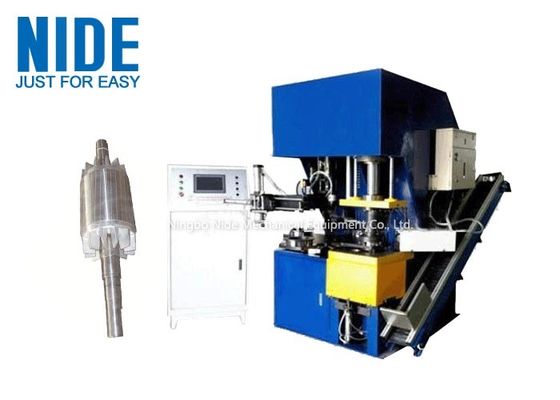

Power Tool Motor Rotor Casting Machine With 4 working station rotay plate



Quick Detail:

1. It saves labor cost.
2. high efficiency and low tooling cost.
3. This machine has 4 working station.
4. This machine is used for producting cast-aluminum rotor.
5. It has somk-sucking system.

Description:

It is 4 working station rotay plate. Mechanical arm takes and puts self-rivet rotor core in the loading station, and then operator injects liquid aluminum in the casting station, which has somke-sucking system, auto releasing agent spraying system and cooling system, aluminum scraps come back to the aluminum melt oven. It owns the merit of saving labor cost, high efficiency and low tooling cost etc.

Technical parameter:

Rotor O.D

40~80mm

Rotor stack length

16~100mm

Pitch time

less than 8s

Upper presser operation pressure

40T

Bottom presser operation pressure

12T

Max die-casting volume

0.6Kg

Fuel tank capacity

425L

Injection piston running speed

slow injection-190mm/s, fast injection-600mm/s

Motor power of 40L Variable piston hydraulic pump

7.5kw

Max. operation pressure

22.6MPa

Machine Dimension

1800(L)X1800(W) X 2350(H)mm

Total Power

about 8.5Kw

Competitive advantages:

It owns the merit of saving labor cost, high efficiency and low tooling cost etc.
