High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding
Home ProductsCoil Forming Machine

High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding

High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding

  • High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding
  • High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding
  • High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding
High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: Z3XL1-150-160B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 400 sets per year
Contact Now
Detailed Product Description
Machine Color: RAL9010 Customized Service: Available
Condition: New After-Sales Service: Overseas Service Center Available
High Light:

pre-forming machine

,

wire winding machine



High Efficiency Automation Coil Rolling Machine / Equipment For Stator Winding





Quick Detail:



1. Model No.: Z3XL1-150-160B.
2. This machine  is used for stator winding final forming,
3. it is driven by the hydraulic system
4. It is controlled by the PLC.
5. It is of highly efficiency and qualified forming.


Technical parameter:

Stator I.D

80~120mm

Stator O.D

≤200mm

Stack height

20~160mm

Displacement of cylinder

20L

Power supply

380V/50/60Hz 1.5KW

Weight

1000Kg

Dimension

1600*1000*2300mm



Description:

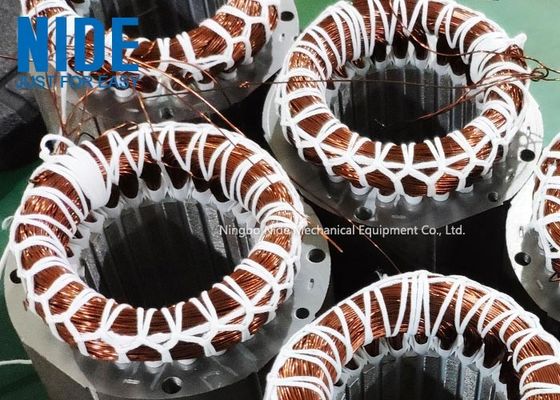

Enter and Exit Station Final Forming Machine is used for stator winding final forming, it is driven by the hydraulic system, controlled by the PLC. Its inward and outward movable station is much convenient for the big motor stator. Its forming is perfectly done by inner expansion,outer wrapping and overhanging pressing. Individual guard teeth fully settles field wire and jump wire to ensure the reliability of electrical leakage distance. It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.

Required information for quotation: stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.



Competitive advantages:

It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.



Fully-automatic-induction-motor-stator-winding-forming-machinery-supplier91
