Automatic Stator Metal Wire Winding Coil Pre-Forming Machine / Equipment

Automatic Stator Metal Wire Winding Coil Pre-Forming Machine / Equipment

  • Automatic Stator Metal Wire Winding Coil Pre-Forming Machine / Equipment
  • Automatic Stator Metal Wire Winding Coil Pre-Forming Machine / Equipment
  • Automatic Stator Metal Wire Winding Coil Pre-Forming Machine / Equipment
Automatic Stator Metal Wire Winding Coil Pre-Forming Machine / Equipment
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: Z1XL1-200-210B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 900 sets per year
Contact Now
Detailed Product Description
Condition: New Machine Size: Middle Size
After-Sales Service: Overseas Service Center Available HS: 8479819000
High Light:

pre-forming machine

,

coil winder machine

Automatic Stator Metal Wire Winding Coil Pre-Forming Machine / Equipment





Quick Detail:

1. The Stator OD max 160mm
2. After first time inserting the winding, use this stator coil forming and shaping machine to expand the winding, so that the second time winding inserting will be easier and convenient.
3. PLC and touch screen control.
4. Hydraulic system driven.



Specifications :

Stator ID

30~100mm

Max. Stator OD

160mm

Stator stack length

15~100mm

Displacement of oil pump

20F

Power Supply

380V/50/60Hz

Machine productivity

About 1500pcs/8hours

Machine weight

800kg

Machine Dimension

1200*700*2200mm



Description:

Stator Winding Pre-forming Machine is driven by hydraulic system; PLC programming; tooling expansion slice makes the first coli and inter-phase insulation paper in slot adjacent, leaving enough space for second insertion and ensurethe quality of successive coil insertion; apply to multi-layer stator winding insertion.


Applications:

After inserting the first winding, use this machine to form the winding into specified dimension, so that the next winding inserting could be easier and convenient. It is used for stator which meet the specification of below.



Competitive advantages:

Fast speed .low noise; simple operation and easy tooling change. PLC and touch screen control.

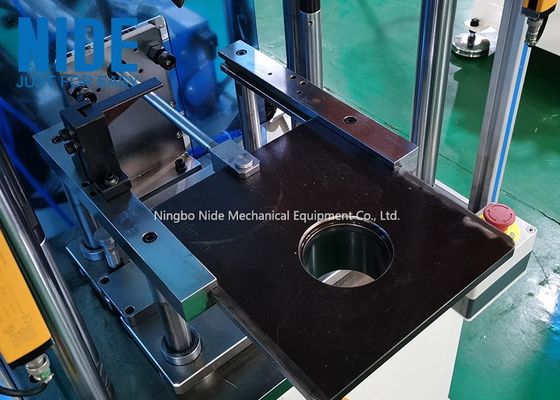

Automatic Stator Metal Wire Winding Coil Pre-Forming Machine / Equipment 0
