| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | BXIL1-100-135 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 80 sets per month |
| Production: | Middle Stator Coil Lacing Machine | Type: | Semi Automatic |
|---|---|---|---|
| Color: | Customized | Condition: | New |
| Used For: | Electric Motor Manufacturing | Size: | Small |
| High Light: | motor winding machine,automatic winding machine |
||
Single working station stator winding lacer for stator coil winding high automation
Quick Detail:
Description:
The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This single side stator winding lacing machine is suitable for the big stator with high winding over-hang. The tooling is movable, and convenient for stator fast laoding and unloading, hence to reduce the labor strength effectively.
Technical parameter:
|
Stator I.D |
110~210mm |
|
Stator stack height |
100~260mm |
|
Stator O.D |
175~300mm |
|
Over-hang height |
20~65mm |
|
Slot number |
8~48 slots |
|
Power source |
AC 220V±10% 50/60Hz |
|
Total power |
0.75KW |
|
Weight |
450Kg |
|
Dimension |
1160*1200*1500mm |
Competitive advantages:
The tooling is movable, and convenient for stator fast loading and unloading.

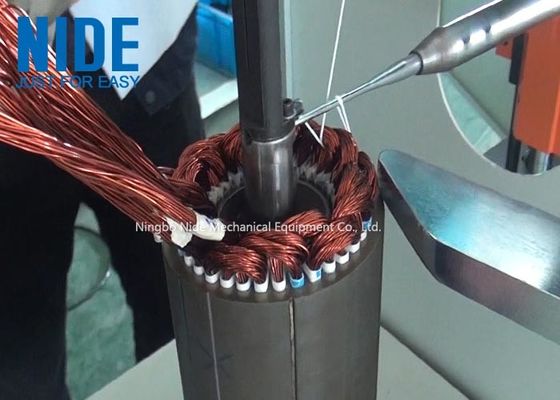

Picture show:
The stator coil winding lacing machine video:
