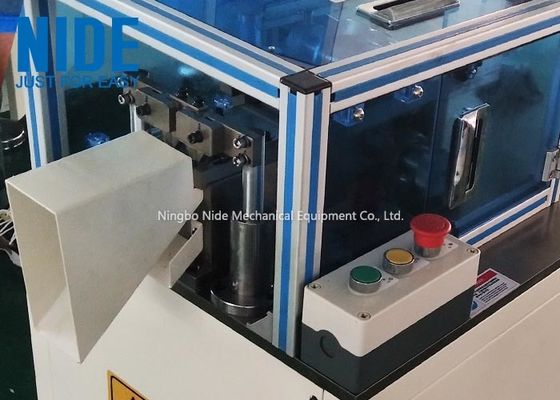

Induction motor stator wedge forming and cutting machine Double heads

Induction motor stator wedge forming and cutting machine Double heads

  • Induction motor stator wedge forming and cutting machine Double heads
  • Induction motor stator wedge forming and cutting machine Double heads
  • Induction motor stator wedge forming and cutting machine Double heads
  • Induction motor stator wedge forming and cutting machine Double heads
  • Induction motor stator wedge forming and cutting machine Double heads
Induction motor stator wedge forming and cutting machine Double heads
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: CG1-100D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 800 sets per year
Contact Now
Detailed Product Description
Name: Wedge Forming And Cutting Machine Working Station: Single
Condition: New Customized Service: Available
Certificate: CCC Function: Cut And Form Wedge
High Light:

automatic motor winding machine

,

coil inserting machine



Induction motor stator wedge forming and cutting machine Double heads



Quick Detail:



1. Model No.: CG1-100
2. The wedge forming and cutting machine is used for wedge forming and cutting.
3. it is equipped with a double row mould for paper cutting,


The wedge forming and cutting machine can prepare wedge for the coil inserting process. Machine will automatically form and cut the wedge as per pre-set.



(1) Technical parameter:

Paper feeding length:10~200mm

Paper cutting thickness:0.2-0.5mm

Paper cutting speed:120pcs/min

Power supply: 220V/ 50/60Hz

Weight:150Kg

Dimension:450*650*1100mm



(2) Application:

This wedge forming and cutting machine is used for wedge forming and cutting, especially for induction motor stator.



(3) Machine function and characteristic:

This wedge forming and cutting machine is equipped with a double row mould for paper cutting, steeping motor for controlling paper feeding action, human machine interface for setting feeding length and a heating device which is used before forming. Cutting speed and heating temperature are adjstable.





Wedge forming and cutting machine

Double-heads-stator-wedge-forming-and-cutting-machine-for-motor-insulation-manufacturing-91

Double-heads-stator-wedge-forming-and-cutting-machine-for-motor-insulation-manufacturing-92

Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
electrical insulation meterial motor winding insulation paper
