Place of Origin: | China |
Brand Name: | NIDE |
Certification: | none |
Model Number: | DCCP2-200B |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 35 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Sets/Year |
Certification: | CCC | Machine Size: | Middle |
---|---|---|---|
Stator O.D: | 150~200mm | Stator Stack Length: | 18~35mm |
Weight: | 350Kg | Dimension: | 1650*450*1500mm |
Highlight: | coil inserting machine,automatic insertion machine |
Balance Electric Motor Insulation Wheel Hub Armature Wedge Inserting Machine
(1) Application:
The external rotor wedge inserting machine is used for wheel hub motor outer armature insulation wedge inserting process ,and the wedge inserter is sutiable for balance car motor, balance scooter motor, wheel hub motor.
(2) Main Feature
Indexing automatic by servo system, wedge feeding and inserting pneumatically. The working frequency is infinitely variable speeds. The slot number and wedge inserting slot can be set in the HMI. After wedge run out , machine will auto alarm.
(3) Technical parameter:
Product name: | Wheel hub motor rotor wedge inserting machine |
motor external rotor OD: | 150~200mm |
motor external rotor height: | 18~35mm |
Insulation wedge thickness: | 3.5-6mm |
Pithc time: | 30s/1pc |
Power supply: | 220V/ 50/60Hz 0.6Kw |
Weight: | 350Kg |
Dimension: | 1650*450*1500mm |
(4) Picture show:

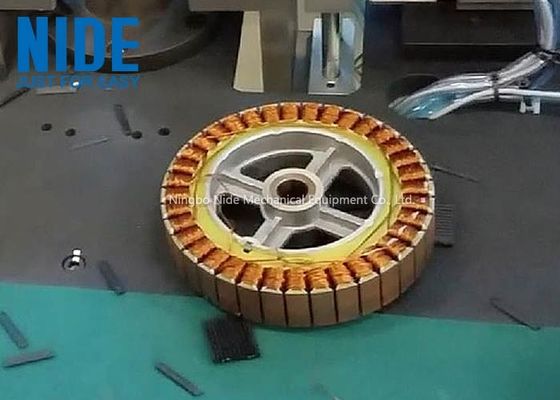

Balance scooter wheel motor external armature wedge machine
