High Stator insulation Wedge paper inserting machine

High Stator insulation Wedge paper inserting machine

  • High Stator insulation Wedge paper inserting machine
  • High Stator insulation Wedge paper inserting machine
  • High Stator insulation Wedge paper inserting machine
  • High Stator insulation Wedge paper inserting machine
  • High Stator insulation Wedge paper inserting machine
High Stator insulation Wedge paper inserting machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: CZGL2-160-190
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 80 set per month
Contact Now
Detailed Product Description
Size: Middle Condition: New
Color: RAL9010 Or As Per Customer Requirement Warranty: 1 Year
Name: Automatic Stator Slot Paper Inserting Machine Function: Inserting The Insulation Paper Into The Motor Stator Slot
Application: Higt Electric Motor Stators Type: Automatic
High Light:

automatic motor winding machine

,

coil inserting machine

High Stator slot insulation Wedge paper inserting machine for multi sizes stator production





Quick Detail:

1. Model No.:CZGL2-160+190
2. This machine is used for preparing high stator insulation wedge paper.
3.It features as easy operation, fast tooling change.
4. the machine is suitable for smal quantity with multi sizes stator production.



(1) Technical parameter:

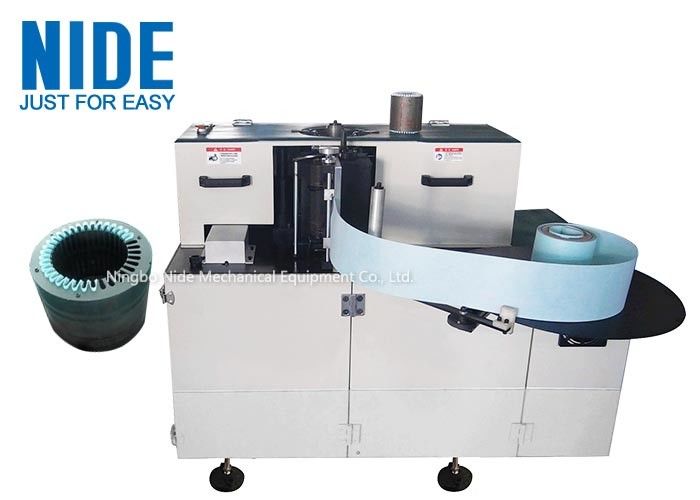

Product name:  Automatic higt stator slot insulation wedge paper inserting machine
Stack height:  20~160mm
Stator ID: 50-120mm
Stator OD: ≤190mm
Efficiency: 0.45s/s
Power supply: 220V/ 50/60Hz 0.75Kw
Weight: 250Kg
Dimension: 1200*700*1100mm





(2) Application:

This stator insulation paper inserting machine is used fro wedge inserting expecially for simple winding inserting machine.




(3) Machine function and characteristic:

This machine is used for preparing wedge.It inserts the wedge into jig so that operator could transfer wedge into the depot of semi-auto coil inserting machine, Wedge feeding, edge folding(optional) and forming process are all done automatic by machine. It features as easy operation, fast tooling change, the machine is suitable for smal quantity with multi sizes stator production.

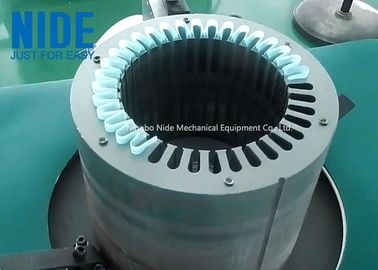

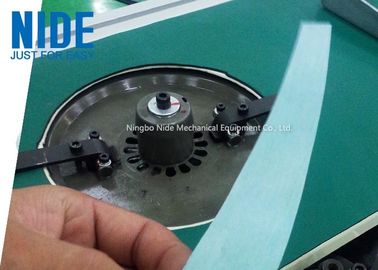

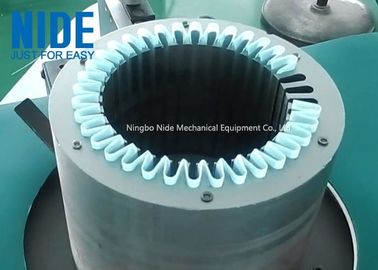

(4) Picture show:

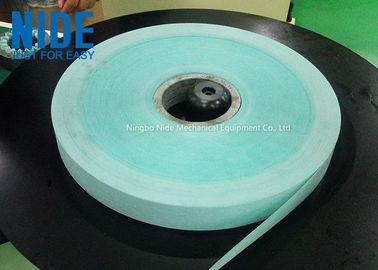

Besides paper inserting machine, We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.



electric motor components
