Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine
Home ProductsCoil Forming Machine

Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine

Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine

  • Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine
  • Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine
  • Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine
  • Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine
  • Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine
Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: CE
Model Number: Z1XL1-200-210
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Automation Type: Fully Automatic Working Station: Single Working Station
Condition: New Customized Service: Available
HS: 8479819000
High Light:

pre-forming machine

,

coil winder machine



Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine







Quick Detail:

1. Model No.: Z1XL1-200/210
2. After first time the stator inserting the winding, use this coil forming machine to expand the winding, so that the second time winding inserting will be easier and convenient.
3. PLC and touch screen control.
4. Hydraulic system driven.





Specifications :

Stator ID

30~100mm

Max. Stator OD

160mm

Stator stack length

15~100mm

Displacement of oil pump

20F

Power Supply

380V/50/60Hz

Machine productivity

About 1500pcs/8hours

Machine weight

800kg

Machine Dimension

1200*700*2200mm





Description:

The semi automatic Stator Winding Pre-forming Machine is driven by hydraulic system; PLC programming; tooling expansion slice makes the first coli and inter-phase insulation paper in slot adjacent, leaving enough space for second insertion and ensurethe quality of successive coil insertion; apply to multi-layer stator winding insertion.




Applications:

After inserting the first winding, use this machine to form the winding into specified dimension, so that the next winding inserting could be easier and convenient. It is used for stator which meet the specification of below.





Competitive advantages:

Fast speed .

low noise;

simple operation and easy tooling change.

PLC and touch screen control.




Picture show

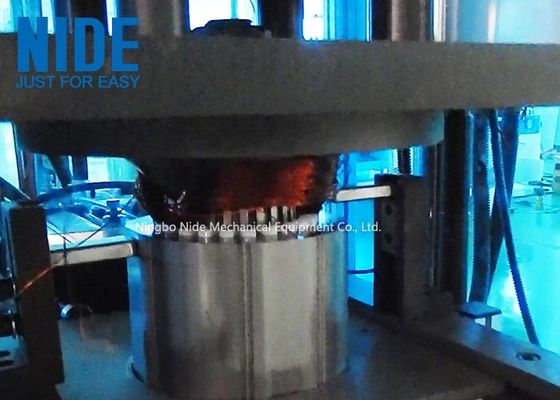

stator coil forming machine

induction motor stator coil forming machine



Machine handling

  1. Use forklift for load and unload, pay attention to machine barycenter, shovel from the base part of machine bottom.
  2. Please use hoisting equipment with enough capacity for machine handling, otherwise it will result in machine fall, further causing accidents like machine breakdown even injuries and deaths.
  3. Remove all processed workpieces or unprocessed workpieces before moving the machine, check and make sure all sorts of fasteners is tight.Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine 2

                                  Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine 3
