Semi Automatic Stator Coil Forming Machine For Water Pump Motor

Semi Automatic Stator Coil Forming Machine For Water Pump Motor

  • Semi Automatic Stator Coil Forming Machine For Water Pump Motor
  • Semi Automatic Stator Coil Forming Machine For Water Pump Motor
  • Semi Automatic Stator Coil Forming Machine For Water Pump Motor
Semi Automatic Stator Coil Forming Machine For Water Pump Motor
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: Z2XJ3-300-300FA
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 100set
Contact Now
Detailed Product Description
Condition: New Machine Size: Middle Size
After-Sales Service: Overseas Service Center Available HS: 8479819000
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
High Light:

stator coil forming machine

,

semi automatic coil forming machine

,

water pump motor coil forming machine

This stator coil winding shaping and forming machine is designed with flip table, suitable for medium indution motor, industrial motor,pump motor ,water pump motor, submersible motor,

The stator coil forming machine is controlled by the hydraulic pressing system, machine is pushed by oil cylinder. Equipped with light curtain, machine can ensure the safety of operator during machine running. Machine is very easy to operate. During operation, operator needs to load and unload the stators manually. Other steps will be done by this machine automatically. The upper and down slides expands the inner shape of the coil over-hang. so as to easy do the second winding inserting and wedge inserting process.



Stator Coil Forming Machine Technical Data

Product : water pump motor stator coil forming machine
Stator OD: Max. 210mm
Stator ID: 30~140mm
Stack length: 20~200mm
Height of coil: 15~65mm
Power: 380V/50/60HZ 1.5KW
Displacement of cylinder: 20F
Machine weight: about 500kg
Machine dimension: (L)920*(W)1120*(H)2500mm



Stator Coil Forming Machine Technical Picture

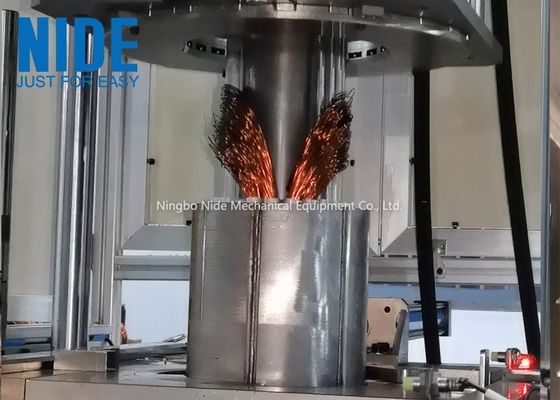

stator coil forming machine.jpg

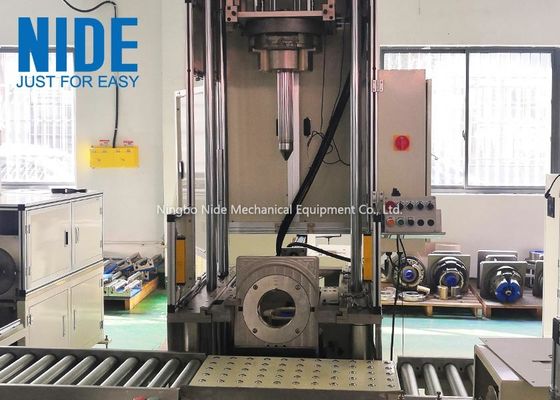

stator coil forming and shaping machine.jpg

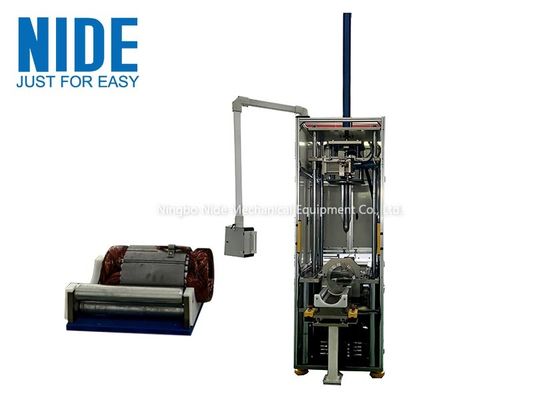

water pump motor stator coil forming machine.jpg



Stator Coil Forming Machine Technical Video
