| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | BXIW1-300-320N |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | The motor stator coil lacing machien is suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C, D/A |
| Supply Ability: | 800 sets per year |
| Stator I.D: | 90-250mm | Stator Stack Height: | 125~300mm |
|---|---|---|---|
| Weight: | 800Kg | Dimension: | 1500*1200*1500mm |
| Type: | Semi Automatic | Color: | Custmized |
| Highlight: | stator lacing machine,automatic winding machine |
||
Horizontal Single Side stator coil Lacing Machine for high winding overhang big electric motor
(1) Introduction and features
The coil lacing machine can automatically ties off the coil ends of motor stators.
That can reduce the labor involved in handling wire ends and increase production efficiency.
Servo indexing system,
PLC control;
human-machine interface；
Horizontal structure;
The tooling is movable, and convenient for stator fast loading and unloading.
Different lacing methods are programmable, such as slot-by-slot lacing, interval lacing and fancy lacing.
No broken for the lacing thread, no damage for the wire enamel；
Stand operation, single “start” button；
(2) Application
The coil lacing machine is suitable for medium and big motor stator with high winding over-hang.
(3) Technical Parameters
| Product name: | Horizontal big electric motor stator coil lacing machine |
| Stator OD: | 200－320mm； |
| Stator ID: | 90-250mm; |
| Stator stack length: | 125－300mm； |
| Overhang height: | 20-65mm |
| Slot NO.: | 8-48 slots (Can be set lacing slot by slot or interval slot)； |
| Lacing method : | Single side lacing； |
| Efficiency: | 5sec/slot； |
| Once lacing qualification ratio | ≥99.5%； |
| Voltage: | 220V 50/60HZ |
| Power: | 4.5KW |
| Weight: | 800KG |
| Dimension: | 1500*1200*1500mm |
(4) Picture show

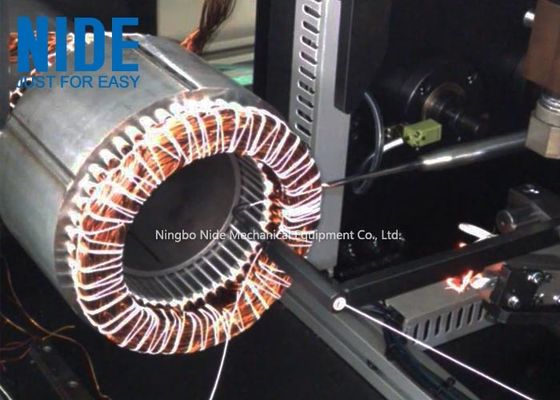

The lacing machine ties the one end of the stator coil
The lacing machine ties the other end of the stator coil
(5)The stator coil lacing machine video
