BLDC Armature Needle Coil Winding Machine For Brushless Motor 120 Rpm Efficiency

BLDC Armature Needle Coil Winding Machine For Brushless Motor 120 Rpm Efficiency

    • BLDC Armature Needle Coil Winding Machine For Brushless Motor 120 Rpm Efficiency
    • BLDC Armature Needle Coil Winding Machine For Brushless Motor 120 Rpm Efficiency
    • BLDC Armature Needle Coil Winding Machine For Brushless Motor 120 Rpm Efficiency
    • BLDC Armature Needle Coil Winding Machine For Brushless Motor 120 Rpm Efficiency
    • BLDC Armature Needle Coil Winding Machine For Brushless Motor 120 Rpm Efficiency
  • BLDC Armature Needle Coil Winding Machine For Brushless Motor 120 Rpm Efficiency

    Product Details:

    Place of Origin: China
    Brand Name: NIDE
    Certification: CE
    Model Number: ND-R2SW02B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Wooden case which is suitable for sea transportation
    Delivery Time: 65 wokring days
    Supply Ability: 120 sets per year
    Contact Now
    Detailed Product Description
    Product Name: BLDC Armature Needle Winding Machine Color: Customized
    Type: Automatic Used For: BLDC Motor External Armature Rotor
    Rotor ID: 20-80MM Rotor OD: 50-120MM
    Efficiency: 120 Rpm Winding Stations: Two

    380V Automatic BLDC armature needle coil winding machine motor rotor needle winder for brushless motor





    (1) Machine induction:

    This Brushless motor needle winding machine is designed for the BLDC external armature rotor coil winding. The armature coil winder adopts double-position needle-type outer winding design. Customers can set parameters according to their own needs, such as automatic winding, multi-wire winding, Automatic indexing, automatic spanning, winding speed, etc.; Each action cycle will wind 2 BLDC rotor at the same time.simple operation and high production efficiency.





    (2) Technical parameter:

    Product name: BLDC armature rotor coil winding machine/ Needle winder
    Type: Automatic
    BLDC Armature I.D.: 20-80mm (Other specifications can be specially designed)
    BLDC Armature O.D.: 50-120mm(Other specifications can be specially designed)
    BLDC Armture stack length:

    10-80mm(Standard stroke)

    100-200mm(Long stroke, special customization)

    Wire dia.: 0.5-1.5mm(Other specifications can be specially designed)
    Applicable pole number : multipolar
    Motor winding mechod : Needle winding
    Winding stations : Two
    Spindle speeds : 0--300 RPM (adjustable)
    Servo mechanism:

    Two 4.4KW Indexing Motor

    One 3KW Winding Motor with Brake

    750W or so two wiring motor

    Voltage: 380V/50HZ Three phase four wires
    Air pressure: 0.5--1Mpa
    Power: 20KW
    Dimension: 1200*1360*1800mm (Length * width * height) Does not include wire rack
    Weight: 600kg





    (3) Application:

    The motor rotor needle winding machine is suitable for outer rotor winding of brushless motor in many fields such as HM, medical equipment, household appliances and electric vehicles.





    (4)Function and Characteristics:

    1. The motor needle winding machine is sutiable for multi-pole BLDC armature coil winding. Manual loading and unloading, automatic clamping, winding and shearing.

    2. The frame adopts thickened 4080 aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.

    3. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.

    4. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;

    5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.

    6. Quick change-overof tooling;(20 minutes with proficiency)

    7. Full aluminum alloy protection

    8. PLC control, fault display

    9. The wire tightness is moderate, no injury, no breakage, ect.

    10. The salt test of the product is carried out within 10 mA in one minute.

    11. Equipment safety index: accord with CE standard.

    12. Efficiency: 120 rev / min.

    13. Beat: 5 minutes / BLDC rotor.

    14. Noise: 60-70 decibels or less.





    (5) Picture show

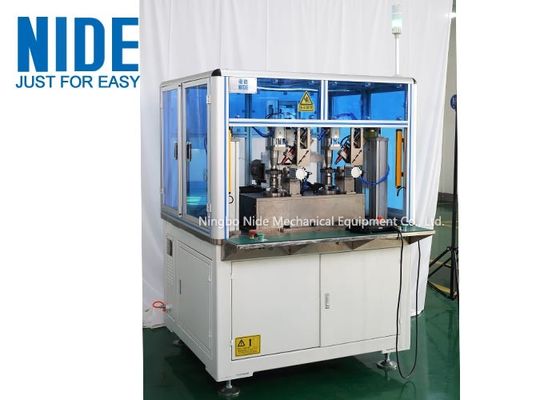

    1.The BLDC rotor needle winding machine

    brushless motor BLDC armature needle winding machine needle winder

    2. The BLDC armature needle winding machine

    double stations BLDC rotor needle winder motor coil winding machine
