    Product Details:

    Place of Origin: China
    Brand Name: NIDE
    Certification: CE
    Model Number: ND-S2W02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: The blower motor winding machine is suitable for sea transportation
    Delivery Time: 55 wokring days
    Payment Terms: L/C, T/T
    Supply Ability: 120 sets per year
    Contact Now
    Detailed Product Description
    Product Name: BLDC Armature Rotor Coil Winding Machine/ Needle Winder Color: Customized
    Type: Automatic Used For: Blower Motor Armature And Other BLDC External Rotor
    Rotor ID: 20-80MM Rotor OD: 50-120MM
    Efficiency: 120 Rpm Winding Stations: Two

    Blower motor coil winding machine BLDC armature rotor needle winding machine





    (1) Machine function and characteristic:

    This motor rotor winding machine is designed for the Blower motor BLDC armature rotor coil winding. The automatic rotor winder adopts needle winding method. Each action cycle will wind 2 BLDC rotor at the same time, greatly improved production efficiency. And the motor needle winder equipped with the servo control system, able to diagnose the fault, count the output etc. The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed, easy for operation and maintenance.





    (2) Application:

    The automatic motor coil winding machine is suitable for Blower motor armature and other BLDC external rotor.





    (3)Function and Characteristics:

    1. The motor needle winding machine is sutiable for multi-pole BLDC armature coil winding. Manual loading and unloading, automatic clamping, winding and shearing.

    2. The frame adopts thickened 4080 aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.

    3. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.

    4. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;

    5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.

    6. Quick change-overof tooling;(20 minutes with proficiency)

    7. Full aluminum alloy protection

    8. PLC control, fault display

    9. The wire tightness is moderate, no injury, no breakage, ect.

    10. The salt test of the product is carried out within 10 mA in one minute.

    11. Equipment safety index: accord with CE standard.

    12. Efficiency: 120 rev / min.

    13. Beat: 5 minutes / BLDC rotor.

    14. Noise: 60-70 decibels or less.





    (4) Technical parameter:

    Product name: BLDC armature rotor coil winding machine/ Needle winder
    Type: Automatic
    BLDC Armature I.D.: 20-80mm (Other specifications can be specially designed)
    BLDC Armature O.D.: 50-120mm(Other specifications can be specially designed)
    BLDC Armture stack length:

    10-80mm(Standard stroke)

    100-200mm(Long stroke, special customization)

    Wire dia.: 0.5-1.5mm(Other specifications can be specially designed)
    Applicable pole number : multipolar
    Motor winding mechod : Needle winding
    Winding stations : Two
    Spindle speeds : 0--300 RPM (adjustable)
    Servo mechanism:

    Two 4.4KW Indexing Motor

    One 3KW Winding Motor with Brake

    750W or so two wiring motor

    Voltage: 380V/50HZ Three phase four wires
    Air pressure: 0.5--1Mpa
    Power: 20KW
    Dimension: 1200*1360*1800mm (Length * width * height) Does not include wire rack
    Weight: 600kg





    (5) Main configuration:

    Control system: Yaskawa

    Servo: Panasonic

    Display screen: Weinview

    Cylinder: SMC

    Electromagnetic Valve : SMC

    Bearing: NSK

    Ball screw , Linear slide: HIWIN

    Coupler: SUNWOOD





    (6)Picture show

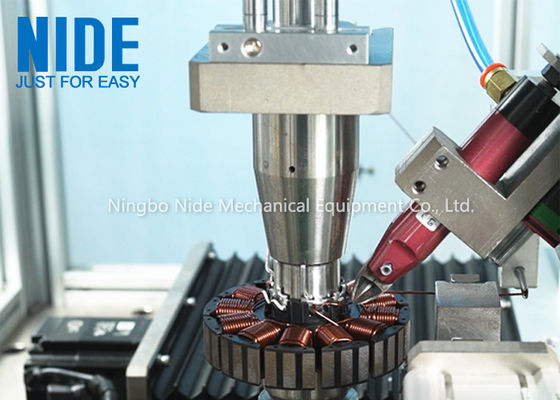

    1.The rotor coil needle winding machine show

    BLDC armature rotor coil winding machine needle winding machine





    2.The blower motor rotor after needle winding

    BLDC armature rotor coil winding machine needle winding machine



    The motor armature and stator external needle winding machine video

    https://youtu.be/-KiRQpYtp1A

    BLDC motor stator external needle winding machine
