| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | Z3XL1-150(160) |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Color: | RAL9010 Or As Per Customer Requirement | After-sales Service Provided: | Overseas Service Center Available |
|---|---|---|---|
| Condition: | New | Weight: | 700Kg |
| Machine Size: | Middle Size | Working Station: | Single Working Station |
| High Light: | coil winder machine,wire winding machine |
||
New Energy Motor Stator Coil Final Forming Machine with Single Working Station
(1) Application
It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.
(2) Technical data
| Stator ID | 30~110mm |
| Stator OD | Max. 160mm |
| Stack length | 20~150mm |
| Winding overhang range | 15--50mm |
| Displacement of cylinder | 20L/min |
| Power | 380V/50/60HZ 1.5KW |
| Machine weight | about 600kg |
| Machine dimension | L850*W1000*H2300mm |
(3) Machine main function and characteristic
1.This machine adopts whole hydraulic system and PCL program.
2.This machine can adjust the forming stack length by changing washer.
3.Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
4.Production capacity ≤13s/set (exclude loading/unloading time)
5.Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%
6.This machine adopts safety grating protection system. Operator need to stand when operating.
7.Machine adopts two hands simultaneously start button to ensure safety.

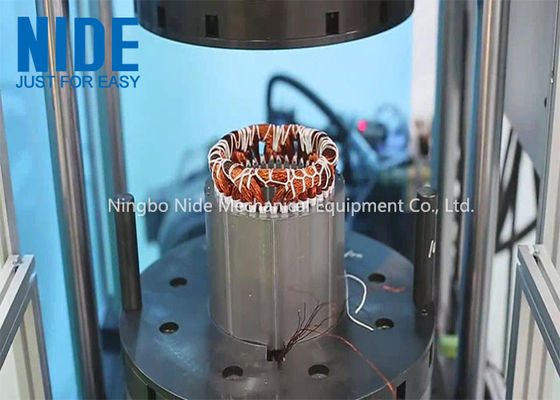

Automatic stator coil final forming machine display:

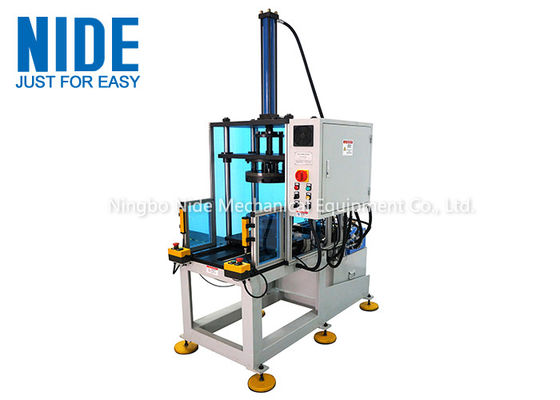

Stator coil final forming machine:
