External Armature Rotor Coil Winding Machine Brushless Motor With Double Stations

External Armature Rotor Coil Winding Machine Brushless Motor With Double Stations

    • External Armature Rotor Coil Winding Machine Brushless Motor With Double Stations
    • External Armature Rotor Coil Winding Machine Brushless Motor With Double Stations
  • External Armature Rotor Coil Winding Machine Brushless Motor With Double Stations

    Product Details:

    Place of Origin: China
    Brand Name: NIDE
    Certification: NONE
    Model Number: ND-R2W01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotibale
    Packaging Details: Wooden case which is suitable for sea transportation
    Delivery Time: 60 working days
    Supply Ability: 90 sets per year
    Contact Now
    Detailed Product Description
    Name: External Armature Rotor Winding Machine Used For: Bldc External Rotor
    After-sales Service: Engineers Available To Service Machinery Overseas Working Stations: Double Two
    Type: Middle Weight: 350KG

    Double staions Double stations Brushless motor external armature rotor coil winding machine





    Introduction:

    This external rotor winding machine is sutiable for bldc external rotor coil winding,Adapts Single flyer winding, double working stations, automatically wire clamping, manually feeding. The parameter, such as turn No., wire clamping indexing angle, rotor direction, etc., can be set on the HMI. The external armture winding machine has self-diagnose function

    The bldc external armture winding machine has remote diagnosis function.





    Specification:

    Production name: BLDC external rotor coil winding machine
    Dimension: 870X560X1600(LXWXH)
    Weight: 350KG
    Voltage: phase AC380V
    Power: 3KW
    Max. speed : 2000rpm(no-load)
    rated speed: 700rpm
    Air pressure: 0.4~0.7MPa

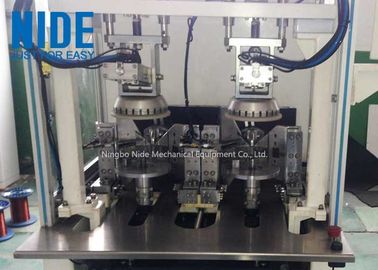

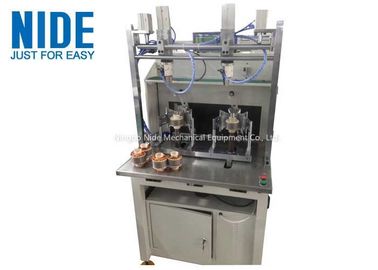

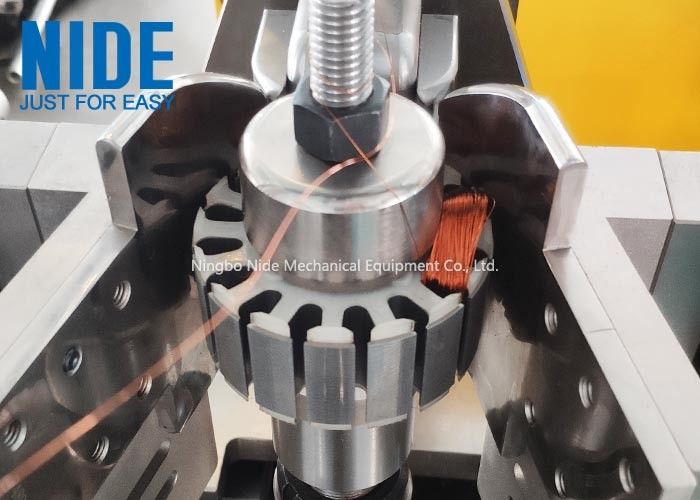

    The external rotor winding machine picture display

    bldc winding machine ,stator coil winding machine

    external armature rotor coil winding machine

    External Armature Rotor Coil Winding Machine Brushless Motor With Double Stations
