Hydraulic System Stator Wire Forming / Shaping Machine 380v 50 60hz 3.75kw

Hydraulic System Stator Wire Forming / Shaping Machine 380v 50 60hz 3.75kw

    • Hydraulic System Stator Wire Forming / Shaping Machine 380v 50 60hz 3.75kw
    • Hydraulic System Stator Wire Forming / Shaping Machine 380v 50 60hz 3.75kw
    • Hydraulic System Stator Wire Forming / Shaping Machine 380v 50 60hz 3.75kw
    • Hydraulic System Stator Wire Forming / Shaping Machine 380v 50 60hz 3.75kw
    • Hydraulic System Stator Wire Forming / Shaping Machine 380v 50 60hz 3.75kw
  • Hydraulic System Stator Wire Forming / Shaping Machine 380v 50 60hz 3.75kw

    Product Details:

    Place of Origin: China
    Brand Name: NIDE
    Certification: CE
    Model Number: Z2XJ3-300/300F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Wooden case which is suitable for sea transportation
    Delivery Time: 50 working days
    Payment Terms: L/C, T/T
    Supply Ability: 90 sets per year
    Contact Now
    Detailed Product Description
    Name: Stator Coil Middle Forming Machine Color: Customized
    System: Hydraulic Control: PLC
    Type: Middle After-sales Service: Engineers Available To Service Overseas

    hydraulic system Stator Wire Forming Machine coil winding shaping machine





    (1) Application

    This hydraulic system Stator Wire Forming Machine coil winding shaping machine is suitable for medium and large electric motor stators, such as air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.





    (2) Technical data

    Production name: Z2XJ3-300/300F stator coil wire forming shaping machine
    Stator ID: 30~110mm
    Stator OD: Max. 160mm
    Stator stack length: 20~200mm
    Winding overhang: Max 45mm
    Displacement of cylinder: 20L/min
    Power: 380V/50/60HZ 3.75KW
    Machine weight: about 500Kg
    Machine dimension: (L)1300*(W)1000*(H) 2400mm





    (3) Machine main function and characteristic

    This stator coil forming machine is with an enter and exit station so as to easy doing loading and unloading.

    The table can be turned over.

    This stator forming machine adopts whole hydraulic system and PCL program.

    This wire forming shaping machine can adjust the forming stack length by changing washer.

    This coil winding forming and shaping machine has five oil cylinders which work individually to expend inner coil, wrap outer coil and form hang over.

    After forming, there is no copper wire enamel broken or wire snap. and coil OD and ID is close to the final forming dimension.

    Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

    Production capacity ≤14s/set (exclude loading/unloading time)

    Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

    This machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.



    (4) Picture show

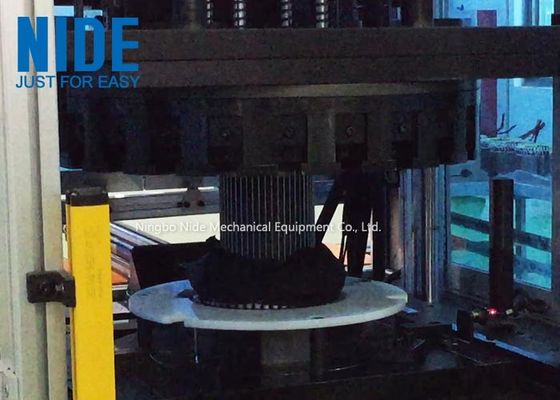

    stator coil forming machine-1
    stator coil forming machine--2
    stator coil forming machine-3
