Place of Origin: | China |
Brand Name: | Nide |
Certification: | CE |
Model Number: | Z2XW1-600-160 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | The stator coil shaping machine is Wooden case suitable for sea transportation |
Delivery Time: | 60 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 600 sets per year |
Name: | Stator Coil Forming Machine | Type: | Horizontal Type |
---|---|---|---|
Working Station: | Single | Color: | Customized |
Highlight: | coil winder machine,wire winding machine |
Automatic Horizontal type Electric motor stator coil winding forming machine copper wire middle shaping machine
(1) Application
The Horizontal type induction motor stator coil middle forming machine is applied to deep water pump motor and other various type of big dimension stator.
(2) Main technical data
Production name: | Z2XW1-600/160Horizontal type middle forming machine |
Stator OD: | ≤300mm |
Stator ID: | ≤200mm |
Stack Height: | ≤400mm |
Height of Coil: | ≤70mm |
Pitch time: | ≤30s/pc |
Displacement of Cylinder: | 50L/min |
Power supply: | 380V 50/60Hz 4Kw |
Weight : | about2500Kg |
Dimension: | (L)4400×(W)1850×(H)1350mm |
(3) Machine mainfunction and characteristic
This stator coil shaping machine is suitable for big power stator, long stack length stator(deep-well pump stator) or other big dimension stator. It is horizontal type with a auto slider. Stator can be moved by lifting device. Tooling adopts flexible principles of inner expansion, outer wrapping and edge forming. It is controlled by PLC. The parameter can be set in the HMI.
Good feedbacks!! intermediate forming machine,intermediate forming machine,forming machine tools,forming machine tools intermediate forming machine

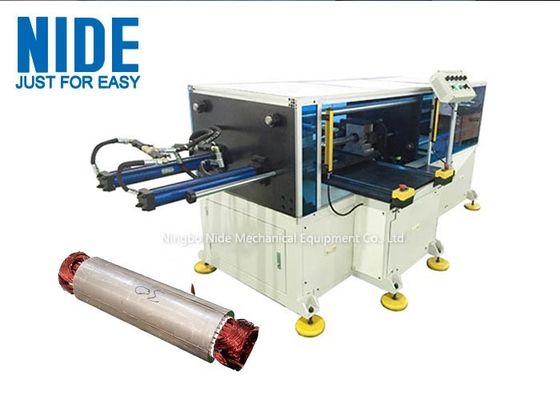

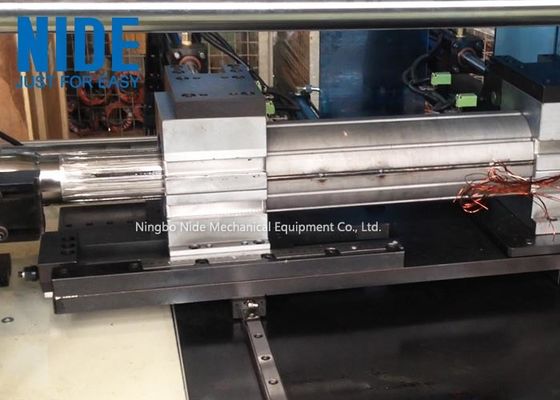

(4) Picture show
