Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line

Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line

  • Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line
  • Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line
  • Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line
  • Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line
Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: RXL2-160E
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 50 working days
Payment Terms: T/T, L/C
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Machine Size: Middle Size Automation Type: Automatic
Certificate: CCC Condition: New
Customized Service: Available Name: Fully Automatic Motor Stator Winding Machine
Application: Induction Motor Stator Coil Winding Working Stations: 2
High Light:

two station stator coil winding machine

,

2 stations stator coil winding machine

,

2 stations automatic stator winding machine

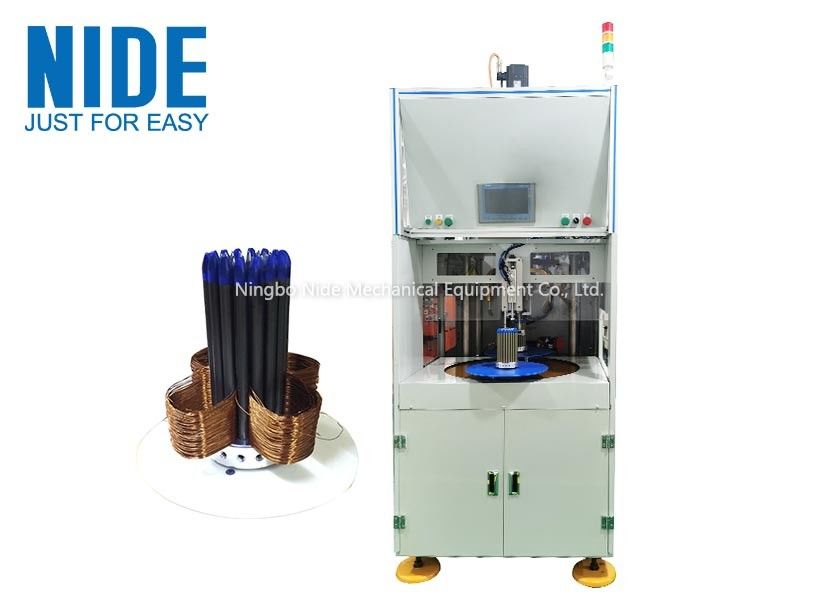

Automatic Stator Winding Machine On Stator Prduction Assembly Line



The stator winding machine is one machine on the induction motor stator production line.

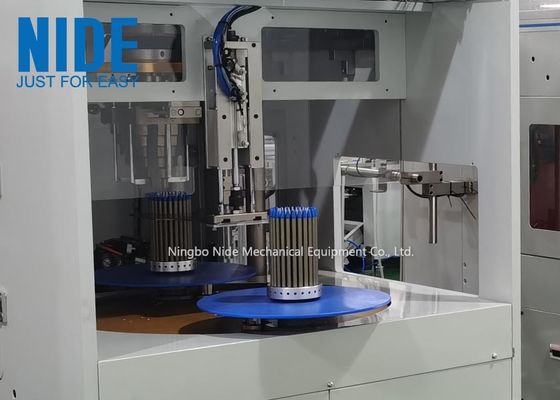

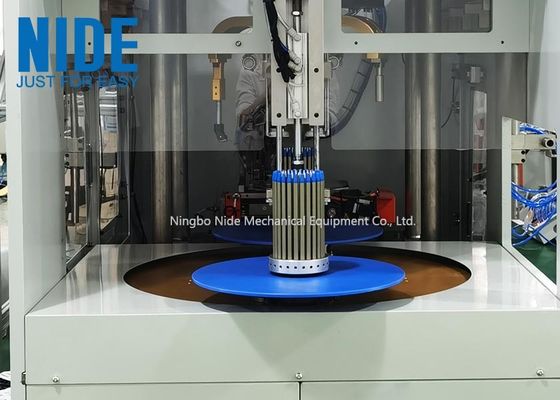

The automatic coil winding machine adopt two stations structure, suitable for electric motor stator coil making , able to exactly wind coils onto the forklike flywheel and easily transfer the coil to coil inserter, with high efficiency and great inserting winding effect.



Main technical data

Product name: Automatic stator winding machine
Winding head: 1pc
Wire diameter: 0.17~1.2mm
Max stack OD: 160mm
Max stack height: 100mm
Winding speed: ≤2000RPM
Flier track: ¢200mm
Transfer number: 2~6section
Power supply: 380V/50/60HZ 7KW
Weight: about 1100kg
Dimension: L1800*W1100*2200mm

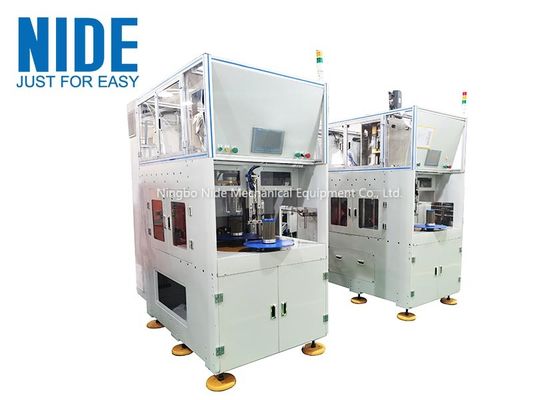

Main picture

stator winding machine-1.jpg

stator coil winding machine-.jpg

automatic stator winding machine-.jpg

5.Stator Winding Machine Video







Two Station Automatic Stator Coil Winding Machine On Stator Production Assembly Line 3





FAQ

1. How to confirm which motor stator winding machine model?

Please kindly email us your electric motor stator lamination drawing, stator drawing, winding diagram, winding data or other related information, So that we could recommend suitable stator winding machine model for you accordingly.

If you don't know the specific, leave message or send inquiry for us, and then we will guide you immediately.



2. How to transport the stator winding machine?

By air or sea



3. How to operate the motor stator winding machines?If there is related training about operating the motor manufacturing machines?

Yes, we can supply machine operation video, our engineers also available to service overseas and go to your factory for operations.



4. How long has your company been in the field of motor manufacturing?

Established in 2007, NIDE is a company devoted in electric motors manufacturing solutions, providing one-stop service for our customers.



5. What field is your machine suitable for?

Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibility.
