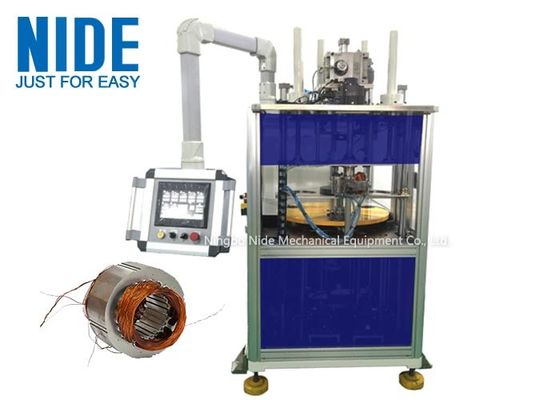

Generator Motor Three Working Station stator Coil wire Inserting Machine

Generator Motor Coil Inserting Machine Three Working Station

(1) Main technical data
Stator stack length:30~120mm
Stator OD:≤150mm
Stator ID:50~120mm
Wire diameter:0.18~1.2mm
Air source:0.6~0.8Mpa
Power supply:380V 50/60HZ 11KW
Weight:3500KG
Deminsion:2550mm(L)X 2230mm(W)X2300mm(H)

(2) Application:
It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

(3) Machine main function and characteristic
This machine adopts movable winding inserting tooling with three working station. One is used to equip with mechanical arm to transfer the coil to the station. The second one is used to cut and form wedge. The third is used to do coil and wdge inserting. This machine is with single-tooth wedge protective function and two sides'mechanical loading and unlaoding function. It can transfer the stator to the automatic stator prodcution line. The working efficacy is very high with three working station.

(4) Information needed for stator production line inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing

2. Stator stack drawing

3. Stator winding drawing

4. Winding distribution drawing

5. Wedge and insulation paper drawing and its material

6. Stator application

7. Required productivity

8. Other technical requirement

If possible, it will be better if customer can send us samples.

This machine has touch screen. All the parameter can be set in the touch sceen. The machine has alarm function. Operator can check the malfuction in the touch screen shown as below picture.
