| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | R2QL1-120/150 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Machine Size: | Middle Size | Condition: | New |
|---|---|---|---|
| Working Station: | Four Working Station | Customized Service: | Available |
| Automation Type: | Fully Automatic | After-Sales Service: | Overseas Service Center Available |
| Highlight: | coil insertion machine,stator winding inserting machine |
||

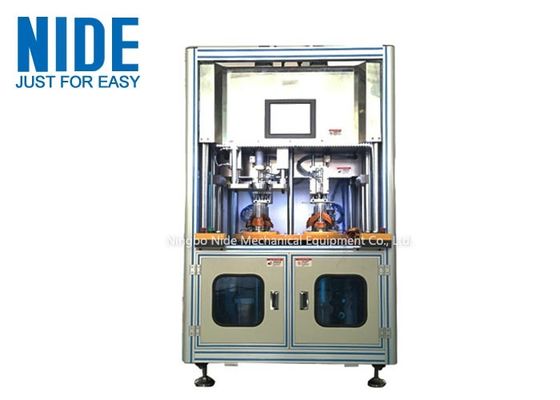

Motor Stator Coil Winding And Coil Automatic Coiling Machine / Equipment High Speed
Quick Detail:
Description:
This machine is can do coil winding, coil inserting and wedge inserting. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen.
With serval station working simultaneously, this machine is efficiency and saves labor cost.
Specifications :
|
Max stator O.D |
≤φ150mm |
|
Stator I.D |
≤φ110mm |
|
Stator stack length |
30-120mm |
|
Slot number range |
8~48 slots |
|
Appropriate Wire |
0.18-φ1.2mm |
| Height of Coil | 3 |
|
Appropriate wire |
Copper wire/Aluminum wire |
| Winding inserting mode | chained/same core |
| Pitch time | ≤40s/pc |
|
Voltage |
380V50/60Hz |
| Power | 15Kw |
|
Air source |
0.6-0.8MPa |
|
Machine productivity |
400pcs/ 8 hours |
|
Machine Dimension |
2000×(W)1300×(H)2300mm |
|
Weight |
≈4000Kg |
Applications:
This machine can insert the winding/coil and the wedge/top cover into the stator slot simultaneously. It is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.
Competitive advantages:
Variety of application, easy operation.
We directly supply our magnets to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
We could customize machine for our customer.
Information needed for stator winding inserting machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Stator winding drawing
4. Winding distribution drawing
5. Wedge drawing and its material
6. Stator application
7. Required productivity
8. Other technical requirement
If possible, it will be better if customer can send us samples.
