| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | QWB1-600-150B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 900 sets per year |
| Color: | Customized | Condition: | New |
|---|---|---|---|
| Used For: | Deep Water Pump Motor Stator | Type: | Horizontal |
| Highlight: | automatic coiling machine,coil insertion machine |
||
High automation deep water pump motor stator coil and wedge winding inserter
(1) Main technicaldata
| Production name | long and larger type stator coil inserting machine |
| Stator ID: | 50~150mm |
| Stator OD: | Max 300mm |
| Wire diameter: | 0.18~1.2mm |
| Stator Stack length: | 300~600mm |
| Voltage: | 380V/50/60HZ |
| Power: | 3.5Kw |
| Weight: | about 1200kg |
| Dimension: | L2100*W2000*1600mm |
(2) Application
The automatic coil inserter is applied to deep water pump motor and other various type of overlength motor stator.
(3) Machine mainfunction and characteristic
The stator coil inserting mahcine is horizontal type semi-auto winding inserting machine. It adopts Mitsubishi AC servo motor and pneumatic element system drive. It si controlled by PLC and equipped with X and Y spindle auto feeding device. It can automatically insert coil and wedge into stator slot simultaneously.

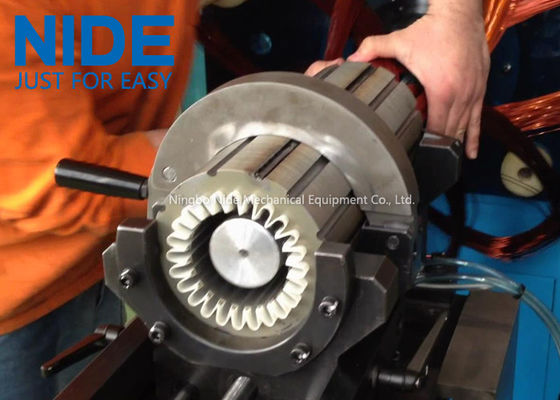

the stator coil inserting machine working picture
