8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot

8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot

    • 8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot
    • 8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot
  • 8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: None
    Model Number: ND-LSI-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: Wooden case suitable for sea transportation
    Delivery Time: 35 working days
    Payment Terms: T/T, L/C
    Supply Ability: 900 sets per year
    Contact Now
    Detailed Product Description
    Name: Paper Inserter Machine Condition: New
    Armature O.D: 20~60mm Commutator O.D: 12~40mm
    Weight: About 400Kg Dimension: 910mm X 880 X 1300mm
    High Light:

    auto insertion machine

    ,

    automatic insertion machine



    8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot





    Quick Detail:

    1, Armature insulation paper inserting machine is used for inserting insulation paper into armature slot.

    2, This machine is easy for operation.

    3, Machine will automatically insert the insulation paper.

    4, The touch screen can save different program for different model armature.

    5, PLC and touch screen control.



    Applications:

    This machine is suitable for commutator motor armature automatically slot paper insertion, it’s widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.



    Specifications :

    Armature O.D

    20~60mm

    Shaft length

    Max 250mm

    Shaft O.D

     3~17mm

    Commutator O.D

    12~40mm

    Slot number

    8~24 slots

    Thickness of insulation paper

    0.1mm~0.5mm

    Length of insulation paper

    10~70mm

    Type of insulation paper material

    DMD, DM, Polyester film

    Efficiency

    0.5S~0.8S/slot

    Air source

    4~6Kg/cm2

    Rated power

    1.5KW

    Voltage

    AC220V, 50/60Hz

    Weight

    About 400Kg

    Dimension

    910mm x 880 x 1300mm



    Description:

    Armature insulation paper inserting machine

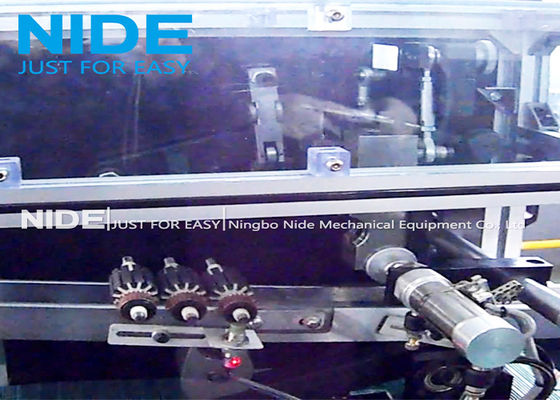

    This machine is used for inserting the insulation paper into the armature slot. Operator only needs to put several pieces armatures on the track at one time, then machine will complete paper inserting automatically. The touch screen can save different armature parameter. And this machine can also be equipped with conveyor to connect with other machine to make a armature production line.



    Competitive advantages:

    This machine is easy for operation. It’s helpful for customer to reduce labor cost and improve production efficiency. And this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control.

    8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot 0

    8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot 1

    8 ~ 24 Slots paper inserter machine for inserting insulation paper into armature slot 2

    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
