Vertical BLDC Motor Stator Paper Inserting Machine

Vertical BLDC Motor Stator Paper Inserting Machine

  • Vertical BLDC Motor Stator Paper Inserting Machine
  • Vertical BLDC Motor Stator Paper Inserting Machine
  • Vertical BLDC Motor Stator Paper Inserting Machine
  • Vertical BLDC Motor Stator Paper Inserting Machine
  • Vertical BLDC Motor Stator Paper Inserting Machine
Vertical BLDC Motor Stator Paper Inserting Machine
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: ND-SSI01D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: T/T, L/C
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Product Name: BLDC Motor Stator Paper Insertion Mahcine Function: Inserting Insulation Paper Into Stator Slot
Condition: New Customized Service: Available
Application: Electric Motor Inner Stator Paper Inserting Machine Type: Automatic
After-sales Service: Oversea Service Control: HMI
High Light:

stator paper inserting machine

,

BLDC motor paper inserting machine

,

HMI Paper Inserting Machine

automatic vertical motor stator paper inserting machine for brushless dc motor making



(1) Machine function and characteristic:

This stator slot paper inserting machine is designed for electric motor inner stator insulation paper insertion,and suitable for servo motor, brushless DC motor and stepping motor stator. This paper insertion machine is easy to operate, Low noise and Highly automated. It adopts mechanical driven system, servo system and pneumatic system. As a result, the machine can automatically do positioning, pressing, paper feeding, paper forming, paper pushing. The paper edge can be auto chamfered so as to solve the winding problem caused by paper, and improve the percent of pass of stator.



(2) Technical parameter:

Product name: Automatic motor inner stator slot paper inserting machine
Stack height: 20mm ~ 60mm
Stator I.D: 50~ 150mm(can be customized if special)
Insulation paper width: 10mm ~ 55mm(can becustomized if special)
Insulation paper thickness: 0.188mm ~ 0.3mm
Slot No.: Odd(more than 8 slots)
Cycle time: 11pcs/pc
Notching dimension: 0-3x45
Air pressure: 0.4~0.8MPa
Power supply: 220V AC 50/60Hz
Power: 7KW
Weight: 600Kg
Dimension: 1600mm X 700mmX 1780mm

(3) Application:

The stator paper inserting mahcine is suitable for servo motor, BLDC motor and stepping motor stator, is used for motor stator insulation protection.



(4) Picture show:

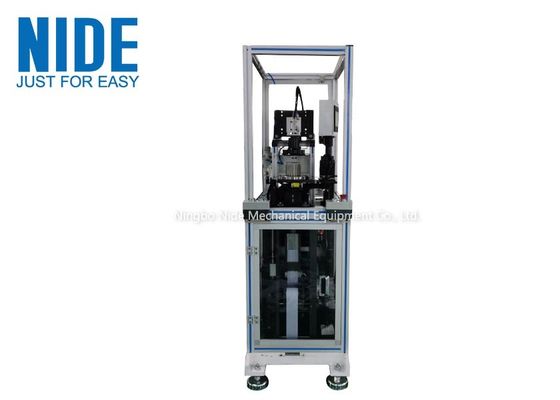

stator insulation paper inserting machine
