Generator Stator Slot Horizontal 1200pcs Paper Insertion Machine

Generator Stator Slot Horizontal 1200pcs Paper Insertion Machine

  • Generator Stator Slot Horizontal 1200pcs Paper Insertion Machine
  • Generator Stator Slot Horizontal 1200pcs Paper Insertion Machine
  • Generator Stator Slot Horizontal 1200pcs Paper Insertion Machine
Generator Stator Slot Horizontal 1200pcs Paper Insertion Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: CZDW1-200-210B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 40 working days
Payment Terms: T/T, L/C
Supply Ability: 100 set per year
Contact Now
Detailed Product Description
Machine Name: Slot Paper Inserting Machine Application: Generator Motor
Function: Insert Insulation Paper Into Stator Slot Weight: 500KG
Tack Time: 0.6-2 S/slot Color: Customized
Type: Automatic After Sales Service: Rovided: Engineers Available To Service Machinery Overseas
Size: Medium Production Capacity: Around 1200pcs/8hours
High Light:

horizontal paper insertion machine

,

horizontal winding inserting machine

,

1200pcs paper insertion machine

This stator paper inserting machine is used to insert insluation paper into stator slot. Inserting insulation paper automatically from bottom of stator slot. All procedure are done by the machine automatically except to put on and take off stator. The production cost will be highly reduced by decreasing the material loss and labor cost.After paper inserted, there should be no damage of stator or coil, no deformation of lamination, free of burr.

(1) Stator paper inserting machine application:

This slot insulation paper inserting machine is specially designed for slot cell paper insertion of large and medium size industrial motor stator. Especially suitable for three phase machine, deep water pump motor, generator, submersible motor, etc..

(2)Stator paper inserting machine Introduction and features

1. Adopts horizontal structure,

2. Low noise, high efficiency

3. Production capacity ≤1s/slot (exclude the loading/unloading time),

4. Suitable for large and medium-size electric motors,

5. Manual loading and unloading, Automatic paper feeding, edge folding and forming;

6. High quality level of the paper inserting process

7. Parameter of different models can be edited, modified and displayed, Slot number change is controlled by electric;

8. Easy for operation, No skilled operator required

(3) Stator paper inserting machine Technical Parameter:

Product name: Generator stator paper inserting machine
Stator I.D: 70~150mm
StatorO.D: MAX 320mm
Stack height: 50- 300mm
Slot No.: can be settable
Height of edge folded: 4mm-7mm
Paper thickness: 0.188-0.35mm
Cycle time: 1-1.5s/s
Power supply: 380V 50/60hz 3.5kw
Weight: about 500kg
Dimension: (L)1100*(W)900*(H)1500mm



(4) Stator paper inserting machine Picture show:

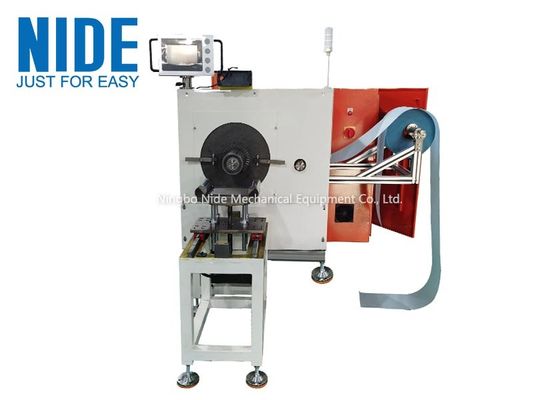

Generator stator paper inserting machine.jpg

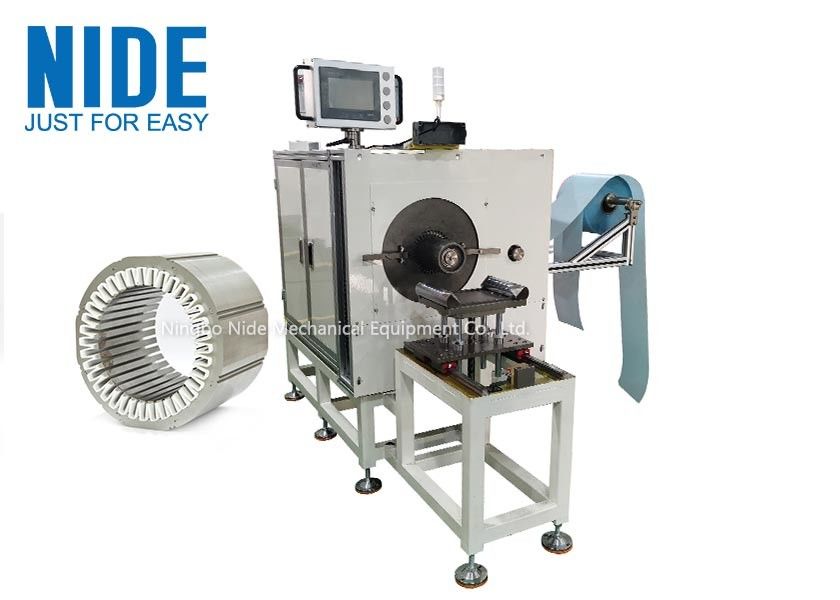

stator paper inserting machine.jpg

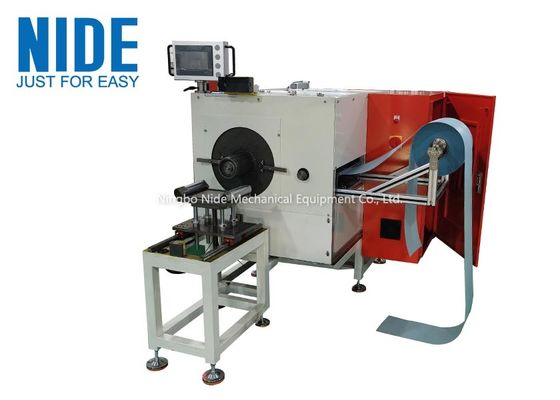

motor stator paper inserting machine.jpg



Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
electrical insulation meterial motor winding insulation paper
