| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | QW1-250-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 sets per year |
| Frame: | Horizontal | Condition: | New |
|---|---|---|---|
| Color: | Customized | Controlled: | PLC |
| Stator OD: | MAX 300MM | Power: | 380V |
| High Light: | coil insertion machine,stator winding inserting machine |
||

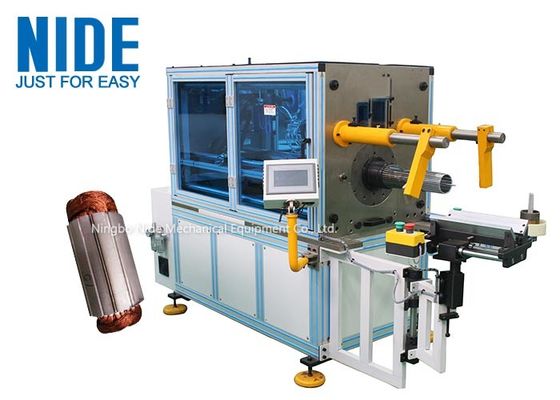

Automatic Horizontal Coil Inserting Machine With Wedge Feeding Mode
Quick Detail:
Description:

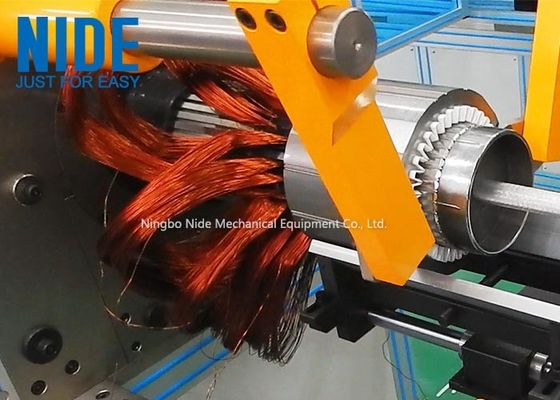

Wedge fedding mode can be set according to different motor.Horizontal Winding Inserting Machine is equipped with human-machine control interface, Horizontal Winding Inserting Machine has the function of status display, malfunction alarm, various parameters setting etc. It has the characteristic of widely application, high automation, easy operation and convenient tooling change.
It is used for winding and wedge automatically inserting. This machine adopts AC servo motor driving system, AC frequency conversion speed regualtion system, pneumatic system. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section.
Competitive advantages:
Easy operation and convenient tooling change. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.
Application:
The stator wire coil inserting machine is suitable for stators met the below specification.
Specification:
|
Stator I.D |
110~210mm |
|
Stator O.D |
175~300mm |
|
Stator stack length |
≤250mm |
|
Slot number range |
16~48 slots |
|
Appropriate wire |
0.2~1.2mm |
|
Input |
380V/50Hz |
|
Power source |
380/50/60Hz4Kw |
|
Dimension |
1000*2000*2000mm |
|
Weight |
≈ 1850kg |
Machine main function and characteristic:
1.With horizontal frame design, controlled by industrial programmable PLC. It is used for winding and wedge automatically inserting.
2.It adopts AC servo motor driving system, AC frequency conversion speed regulation system, pneumatic system.
3.It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section. Wedge feeding mode can be set according to different motor.
4.Euipped with human-machine control interface, it has the function of status display, malfunction alarm, various parameters setting etc.
5.It has the characteristic of widely application, high automation, easy operation and convenient tooling change.
