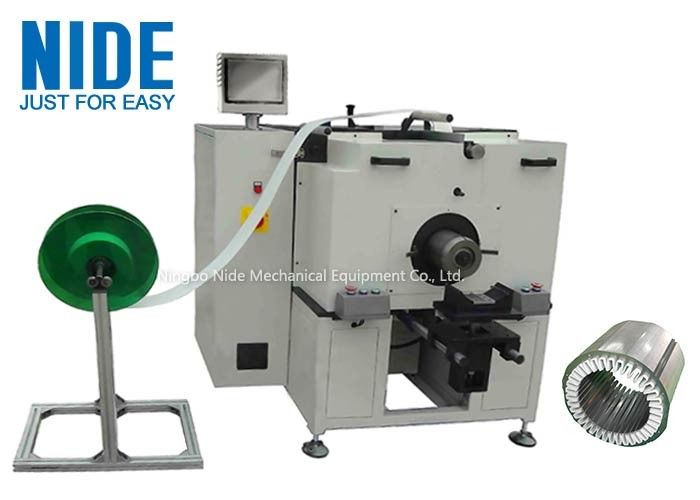

Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed

Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed

  • Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed
Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: CZDW1-190/210
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Product: Medium Pump Motor Stator Paper Inserting Machine Color: Customized
Allication: Pump Motor Stator Type: Automatic
High Light:

auto insertion machine

,

automatic insertion machine



Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed





Application:

It is suitable exclusively for large and medium-size motors, especially suitable for generator, deep pump motor,three phase machine, etc..





Quick Detail:

1. Model No.: CZDW1-190/210
2. It  is suitable exclusively for large and medium-size motors.
3. This machine is characterized by low noise, fast speed, excellent forming,
4. it is convenient and easy for different slot number stator production and changing tooling.
5. It is suitable for generator, deep pump motor, three phase machine, etc..





Description:

Horizontal Stator Insulation Paper Inserting Machine is suitable exclusively for large and medium-size motors, inserting insulation paper automatically from bottom of stator slot; automatic paper feeding, edge folding and forming; characterized by low noise, fast speed, excellent forming, etc.; slot number change is controlled by electric; interval slot inserting and skip slot inserting could be at option; it is convenient and easy for different slot number stator production and changing tooling. Especially suitable for generator, deep pump motor,three phase machine, etc..




Technical Parameter:

Stator ID

φ80-φ150

Stator Laminated thickness

60-190mm

 Height of edge folded

3-7mm

Max insulation paper'sthickness

0.35mm

Feeding length

15-50

Tack time

0.7-1 S/slot

Power

380V 50- 60HZ

Dimension

1100*900*1500mm

Weight

550KG



Competitive advantages:

This machine is characterized by low noise, fast speed, excellent forming, it is convenient and easy for different slot number stator production and changing tooling.





Besides the paper inserting machine, we also supply insulation material for stators or armatures, with different thermal class and dimension.



Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed 0

Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc


Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed 1




electrical insulation meterial motor winding insulation paper
