Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor

Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor

  • Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
  • Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
  • Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
  • Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Medium Motor Stator PLC Coil Inserting Machine For Industrial Motor
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: QW1-250-300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per year
Contact Now
Detailed Product Description
Frame: Horizontal Condition: New
Color: Customized Controlled: PLC
Stator OD: MAX 300MM Power: 380V
High Light:

horizontal coil inserting machine

,

coil inserting machine horizontal

,

plc inserting coil stator

The motor stator coil inserting machine is suitable for Large and medium-sized motor stators

The stators are too heavy to do loading and unloading.

We Using a horizontal structure. The change in structure doesn't affect the final inserting quality.

1. Stator coil inserting machine Feature

Can be customized accordingly

Manual loading and unloading

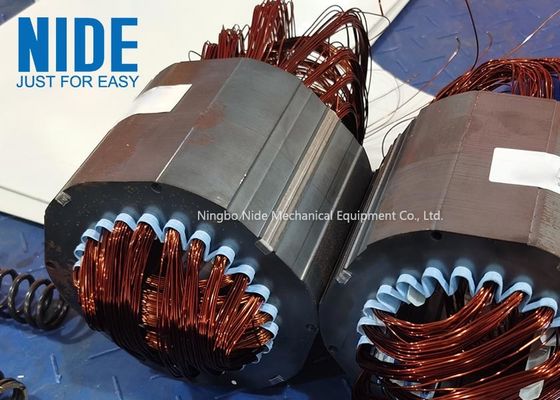

After insertion, no deformation of stator, lamination, or insulation paper

Easy for operation, No skilled operator required

Parameter of different models can be edited, modified and displayed

Quick and easy readjustment for other types of stator

Copper wire and aluminium wire are both applicable

2. Stator coil inserting machine Application

This stator coil inserting machine is suitable for large and medium-sized electric motor, induction motor, 3 phase motor.

3. Stator coil inserting machine Main Technical Parameter:

Product name: Electric Motor stator coil winding inserting machine
Stator ID: φ100-φ150
Stator OD: ≤250mm
Stator height: 80-300mm
Appropriated wire diameter: 0.2~1.2mm
Slot number range: 24~48slot
Power: 380V 50- 60HZ 3KW
Dimension: 3210*820*1600mm
Weight: 800KG

The parameters of the stator coil inserting machine can be adjusted.

We can customize the machine according to customer needs.

Please feel free to contact us if you need it.



4. Stator coil inserting machine Picture Show

stator wire inserting machine.jpg

stator wire winding inserting machine.jpg

motor stator wire inserting machine.jpg



The Horizontal Type Stator Winding Inserting Machine working video
