Horizontal Electric Motor Stator Slot Paper Inserting Machine

Horizontal Electric Motor Stator Slot Paper Inserting Machine

  • Horizontal Electric Motor Stator Slot Paper Inserting Machine
  • Horizontal Electric Motor Stator Slot Paper Inserting Machine
  • Horizontal Electric Motor Stator Slot Paper Inserting Machine
  • Horizontal Electric Motor Stator Slot Paper Inserting Machine
Horizontal Electric Motor Stator Slot Paper Inserting Machine
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: CE
Model Number: ND-SSIW01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 800 sets per year
Contact Now
Detailed Product Description
Product Name: Automatic Stator Paper Inserting Machine Tpye: Automatic
Stator Stack Length: 20mm~150mm Max Stator O.D: 200mm
Insulating Paper Thickness: 0.188~0.35mm; Efficiency: About 1~2 Seconds/slot;
Voltage: 220V/380V Condition: New
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

horizontal paper inserting machine

,

stator paper inserting machine

,

slot paper inserting machine

Automatic Horizontal Motor Stator slot insulation paper inserting machine



This stator insulating paper inserting machine adopts a horizontal design, which is suitable for inserting insulating paper in the stator slot, manual loading and unloading, and automatic paper feeding, cutting, forming, indexing and inserting in the whole process.



Functions and features:

Suitable for inserting insulating paper at the bottom of the stator straight slot;

Manual loading and unloading method;

Automatic completion of paper feeding, cutting, forming, indexing, paper insertion and other processes;

The paper inserting machine has good stable performance, simple operation, safe and reliable;

High production efficiency: about 2.5 seconds/slot;

The paper inserting machine frame is built by professional welding of sheet metal or aluminum, and the protective cover is added with plexiglass. The appearance is beautiful, the design is reasonable, and the structure is firm;

The paper inserting machine is equipped with a safety device, and the equipment will automatically stop when a paper jam or other fault occurs during the operation of the equipment;

The mold change is convenient. The mold is made of cold work die steel Cr12Mov and the hardness reaches 55-60HRC after heat treatment, which is not easy to wear, stable and reliable.



Equipment technical parameters

Product name Horizontal electric motor stator slot paper inserting machine
Stator OD.: φ50-φ200mm;
Stator stack thickness: 20~150mm;
Paper feeding length: adjustable within 20~155mm;
Number of stator slots: even and odd slots
Insulating paper thickness: 0.188~0.35mm;
Spindle drive: Spindle motor: 0.75KW;
Indexing drive: Indexing servo motor: 0.75KW;
Touch screen: 7-inch screen;
Input power: 220V AC50/60HZ;
Total power: 3KW;
Air pressure: 0.4~0.8MPa;
Dimension: about 2260×620×1600mm (L×W×H);
Weight: about 750Kg.



Application

This Automatic Stator Insulation Paper Inserting Machine is suitable for BLDC motor, servo motor, stepper motors, servo motors, induction motors, etc.



Picture show

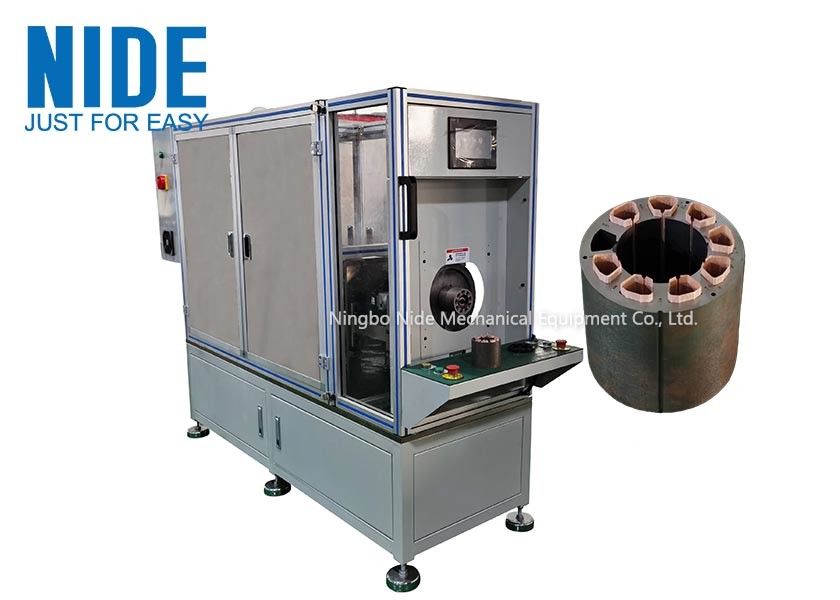

Horizontal Electric Motor Stator Slot Paper Inserting Machine 0

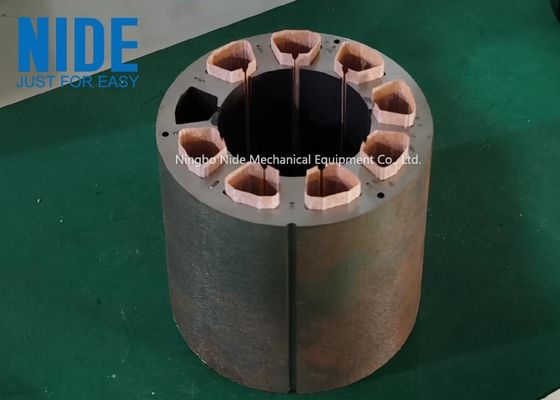

Horizontal stator insulation paper inserting machine.jpg

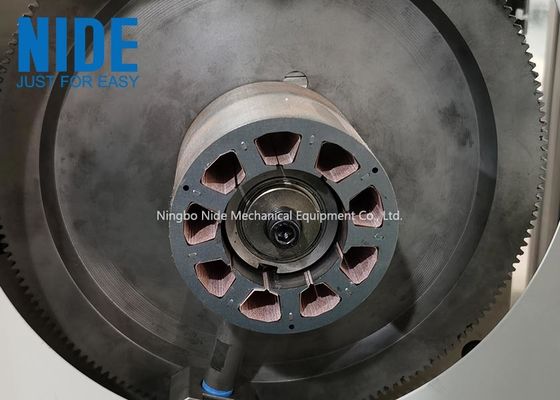

Horizontal stator slot paper inserting machine.jpg

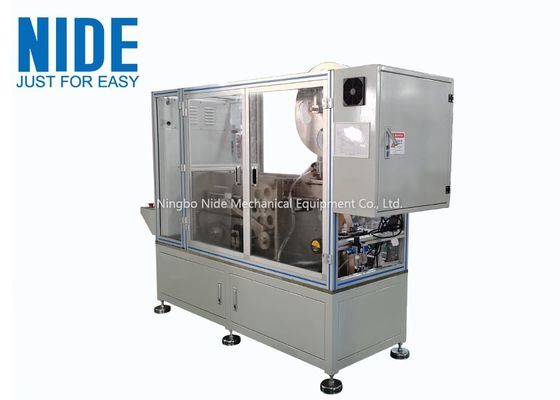

Automatic Horizontal stator insulation paper inserting machine.jpg



Besides paper inserting machine, we also provide insulation material with different dimensions of insulation material as per customer's requirement.There are different insulation material, DMD B/F class, Polyester film Class E, Red Vulcanized Fiber, Class A.
