| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | CE |
| Model Number: | ND-SSI01 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 set per month |
| Application: | Even Slots Electric Motor Stator Paper Insertion | Function: | Inserting Insulation Paper Into Stator Slot |
|---|---|---|---|
| Condition: | New | Working Station: | Single |
| Customized Service: | Available | Produc Name: | Brushless Motor Stator Paper Inserting Machine |
| Type: | Automatic | Process: | Cutting, Folding And Inserting |
| After-sales Service: | Oversea Service | Control: | HMI |
| High Light: | automatic insertion machine,paper inserter machine |
||
Automatic even slots Servo and stepping motor stator slot paper insertion machine for BLDC motor
(1). Introduction and features
The paper insertion machine is suitable for BLDC / brushless motor stator, servo motor and stepping motor stator insulation paper inserting. It automatically complete paper cutting, folding and inserting. The parameter can be set on HMI, low noise, high speed and high automation and easy operation. It has remote diagnosis function.
(2). Specification
| Product name: | Automatic Stator slot paper inserting and forming machine |
| Stack height: | 20mm ~ 60mm |
| Stator I.D: | 50~ 150mm(can be customized if special) |
| Insulation paper width: | 10mm ~ 55mm(can becustomized if special) |
| Insulation paper thickness: | 0.188mm ~ 0.3mm |
| Slot No.: | Even(more than 8 slots) |
| Cycle time: | 11sec/pc |
| Notching dimension: | 0-3x45 |
| Air pressure: | 0.4~0.8MPa |
| Power supply: | 220V AC 50/60Hz |
| Power: | 7KW |
| Weight: | 600Kg |
| Dimension: | 1600mm X 700mmX 1780mm |

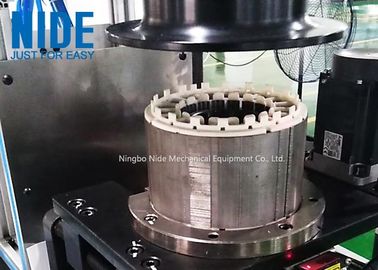

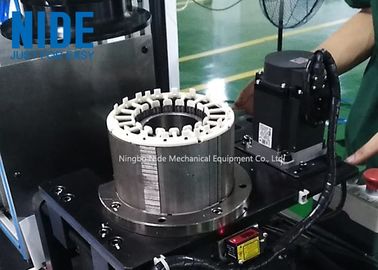

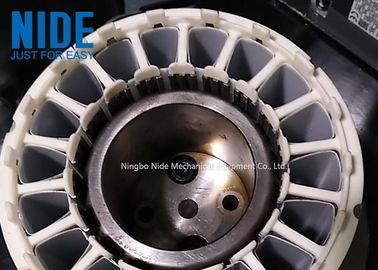

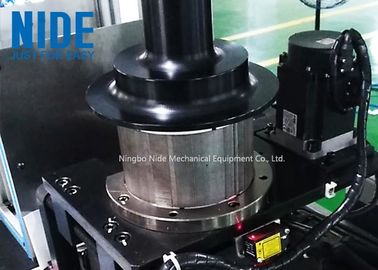

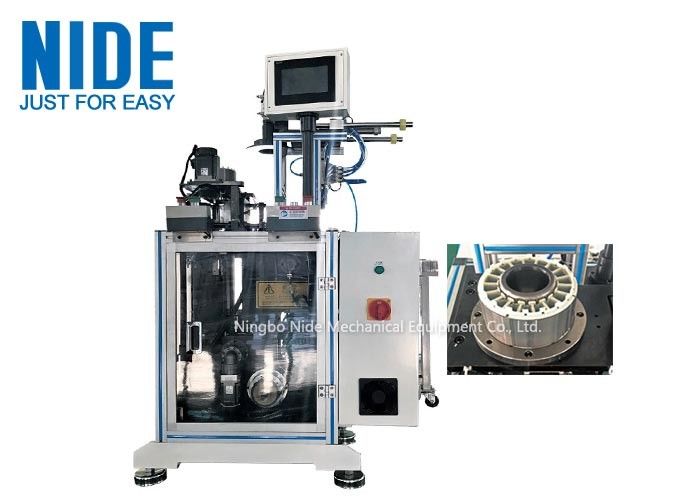

(3).Picture show
(4). The motor stator inner slot insulation paper insertion machine video
