| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | CE |
| Model Number: | CZDL1-90-135B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 800 sets per year |
| Application: | Stator | Function: | Inserting Sinsulation Paper Into Stator Slot |
|---|---|---|---|
| Condition: | New | Working Station: | Single |
| Customized Service: | Available | ||
| Highlight: | automatic insertion machine,paper inserter machine |
||
Automatic Stator Slot Insulation Paper Insertion Machine For induction motor
(1) Application
This automatic stator slot Insulation Paper Inserting Machine is suitable for small and medium-sized three phase motor, gasoline generator, etc.
(2) Technical data:
| Proudution name | CZDL1-90(135) stator slot paper inserting machine |
| Stator stack length: | 20~90mm |
| Stator OD: | max 135mm |
| Stator ID: | 20~90mm |
| Folding height/width: | 2~4mm/4~7mm |
| Insulation paper thickness: | 0.188~0.35mm |
| Efficiency: | ≈0.5s/s |
| Power: | 380V/50/60HZ 0.75KW |
| Machine weight: | ≈200kg |
| Machine dimension: | (L)1200*(W)650*(H)1100mm |
(3) Machine main function and characteristic:
The cutting edge of insulation paper should be neat, no damage, and free of burr. The stator should not be deformation and stator lamination should not be upward resulting from paper inserting.
The whole set of tooling can be changed, and it takes about 30min.
The paper inserting Machine will stop automatically when paper jams.
With a text displayer, this machine can display and set all different models' parameter.
Primary qualification rate ≥99%, after rework, the rate ≥99.9%
Production capacity ≤1s/slot (exclude the loading/unloading time)
Paper width: stator stack length+14mm, edge folded: according to customer's requirement.
Operator needs to stand while operating. This machine adopts single hand system button.
This insulation paper inserting machine is suitable for Polyester Film insulation paper roll material with thickness 0.25mm and fixed width(width is decided by customer)

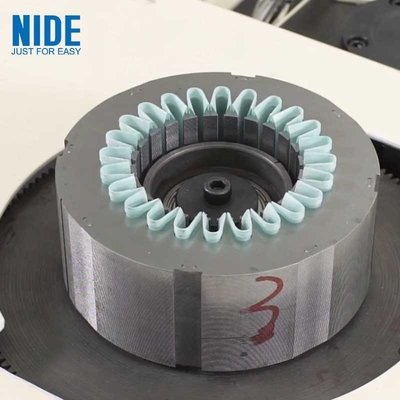

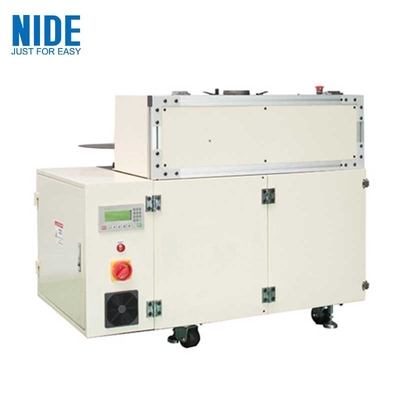

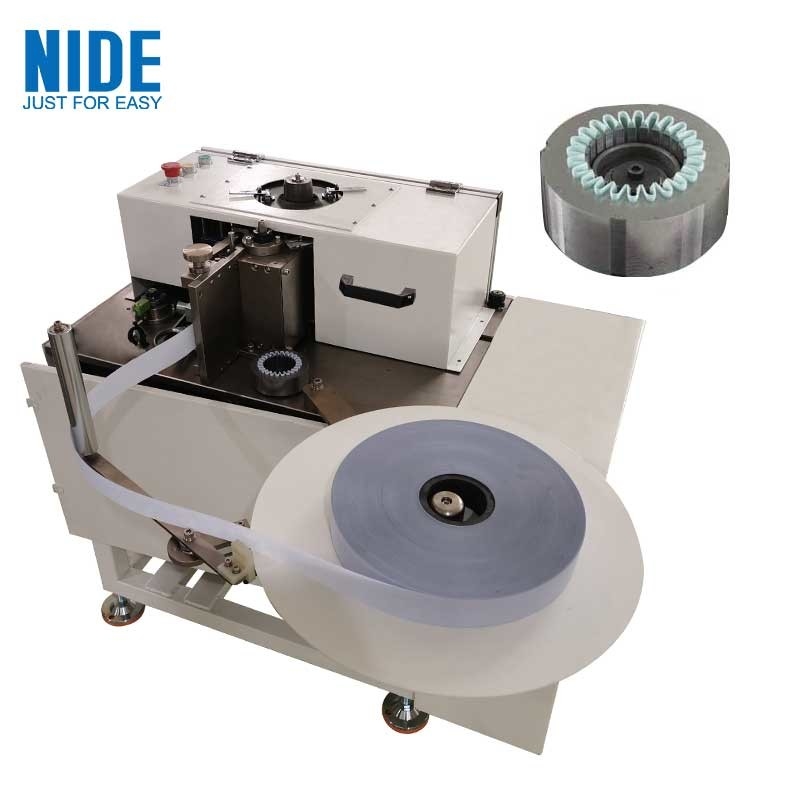

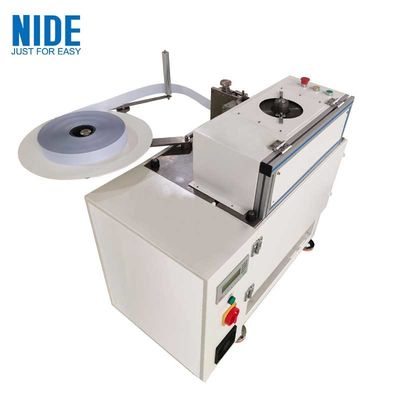

(4)The stator inslot paper inserting machine picture show
Paper inserting machine running video
