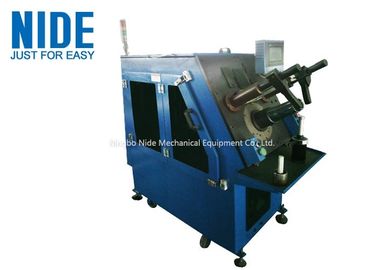

Semi Automatic DC Motor Coil Inserting Machine Single Working Station

Semi Automatic DC Motor Coil Inserting Machine Single Working Station

  • Semi Automatic DC Motor Coil Inserting Machine Single Working Station
  • Semi Automatic DC Motor Coil Inserting Machine Single Working Station
Semi Automatic DC Motor Coil Inserting Machine Single Working Station
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: QX1-100-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Condition: New Working Station: Single Working Station
Certificate: CCC Size: Middle Size
After-Sales Service: Overseas Service Center Available Color: RAL9010 Or As Per Customer Requirement
Customized Service: Available
High Light:

automatic coiling machine

,

coil insertion machine

Semi automatic DC motor stator servo coil inserting equipment coil insertion machine





The DC motor stator coil inserting machine can insert coil and wedge simultaneously,both copper wire and aluminium wire are applicable.





(1) Main technical data

Stator OD: Max. 160mm
Stator ID: 30~100mm
Stator stack length: Max.150mm
Tooling traveling distance: Max.70mm
Suitable wire material: copper/aluminium wire
Max. slot filling rate: 80%
Slot number: 8~48slots
Power: 380V/50/60HZ 3Kw
Machine weight: about 850kg
Machine dimension: L1800*W650*1700mm

Semi Automatic DC Motor Coil Inserting Machine Single Working Station 0



(2) Machine main function and characteristic

The machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system , and wedge insertion by variable frequency motor.

It is controlled by HMI, and machine can diagnose breakdown automatically.

This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)

The wedge feeding is by stepping motor, feeding length, cutting, forming, inserting slot number could be set.

Both copper wire and aluminium wire are appliable.

Production capacity ≤25s/set (exclude the man-hours for auxiliary work)

Primary qualification rate for copper wire ≥98.5%, after rework, the rate ≥99.5%

Both wedging system and feeding system have pre-decelerating function.

This machine has alarm for material runout.

Wire pushing height and stop time can be set in the HIM interface.

This machine has fixed foot and removable wheel.

Wedge should not be damaged, no burr in the surface, no movement or slide.

Slot paper should not be damaged, no movement or slide. Copper wire should not be pull away from the paper.

The stator should not be deformation or stator lamination should not be upward.





(3) Application

The stator coil inserting machine is suitable for universal motor and DC motor, is widely used in blenders, vacuum cleaners, and hair dryers, power tools, drills, sanders, circular and jig saws, domestic washing machines, Starter motor,etc.





(4) Picture show

universal motor coil inserting mahine

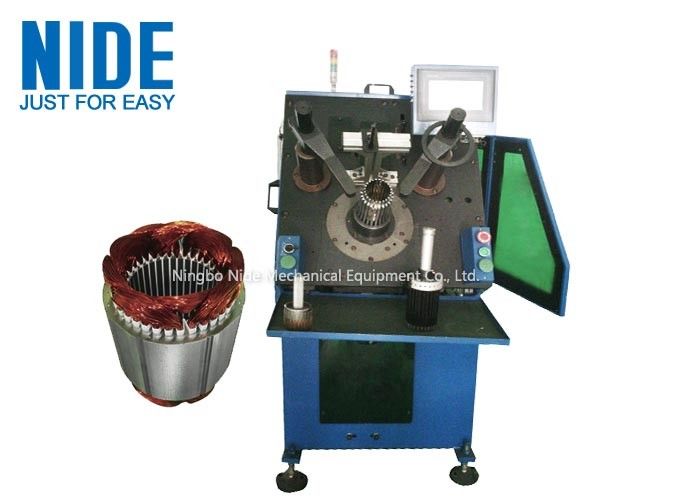

DC motor coil inserting machine



(5) The DC motor servo stator coil inserting machine video

stator coil inserting machine
