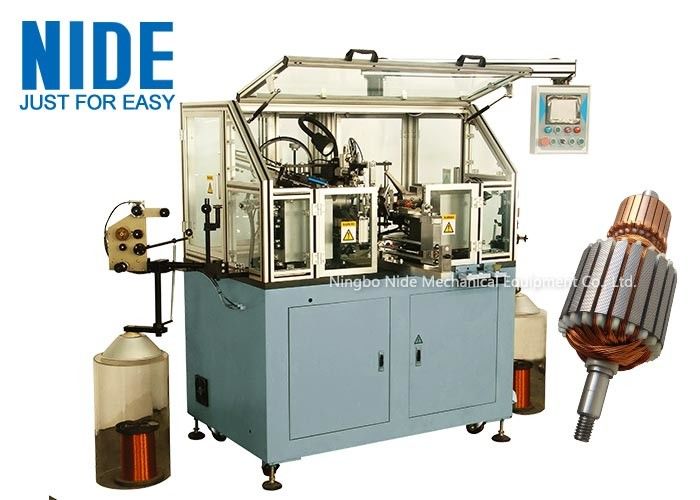

    Automatic electric motor armature winding machine for Meat Grinder and Mixer Motor rotor


    The Automatic Armature Winding machine is designed for winding of various types of hook commutator armature used in home appliances, power tools and automobile industry. As the machine is simple to operate, quick to set to the various armature sizes and high productivity, it is especially suitable for batch winding of motor armatures.

    armature winding machine


    (1) Induction and Feature:
    1.Three armature winding mode : single slot-single hook, single slot-double hook and double layer winding. It could do twice winding in one slot, Four times winding in the two adjacent slots.
    2.The machine facilitates automatic wire hooking, cutting, and indexing.
    3.It is used for winding a diverse range of motor armatures and rotors.Quick to set to the various armature sizes.Production parameter for 100nos armatures could be stored, Display parameter, including shift output, total output, consuming time, present slot No. turn No. and hook No., etc.
    4.The armature winding device is easily removed.
    5.The counter can be switched for both, forward and reverse winding.
    6.The clutch gives a smooth start to the winding shaft by both hand lever and pedal.
    7.It could select to wind single or twice, set to wind on the journal of the armature, slow rise and slow decline function, stable type fixture, up-down protective module, protective hooking.
    8.Only can snap break the wire: winding before break the wire, or break before winding.
    9.The machine stops automatically after the pre-set number of turns has been reached,
    10.The machine can be stopped during the winding cycle by means of a lever stop switch.
    11.Automatic alarm if any abnormal condition occurs: alarm on the touch screen, buzz alarm and light tower alarm.


    (2) Main technical data:

    Wire diameter range: 0.19~0.65mm
    Armature diameter: 20~60 mm
    Armature stack length: 10~60 mm
    Armature slot number: odd or even slot
    Shaft length: 50~ 250mm
    Turn number: 0~99999
    Commutator diameter: 12~42 mm
    Winding speed: 0~2000 rpm
    Indexing speed: 0~2000 rpm
    Action: single action or automatic
    Production efficiency: 600pcs/8 hours (based on armature with 12slots 24hooks, 20turns)
    Air supply pressure: 4~6 Kg/cm2
    The machine total power: 3.0 KW
    Voltage: three phase AC380V±10%, 50/60 Hz
    Weight: about 400 Kg


    (3) Application:
    The Automatic Armature Winding machine is designed for winding of various types of hook commutator armature used in home appliances, power tools and automobile industry.


    (4) Main Configuration:
    Indexing servo motor: 750WX1
    Winding servo motor 1000WX2
    Control : PLC
    Transformer: three phase 400V, single phase 230V
    Winding flier: die-casting aluminium alloy, integral type, double shaft balancing calibration, easy disassemble, standard type
    Winding spindle: standard short spindle
    Indexing spindle: standard model


    (5)Operation:
    Manually put the armature onto the winding station. Double palm “start” button.


    (6)Picture show

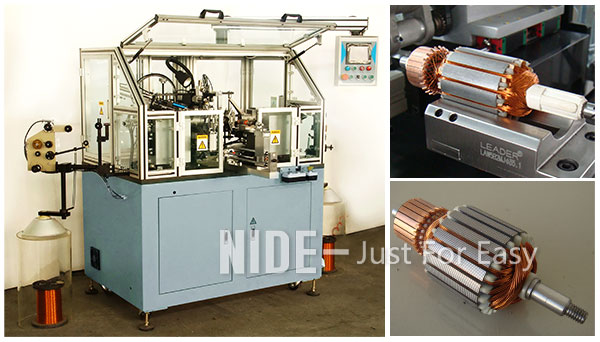

    1.The armature winding machine overall display
    armature winding machine
    2. The armature winding machine internal structure
    rotor coil winding machine

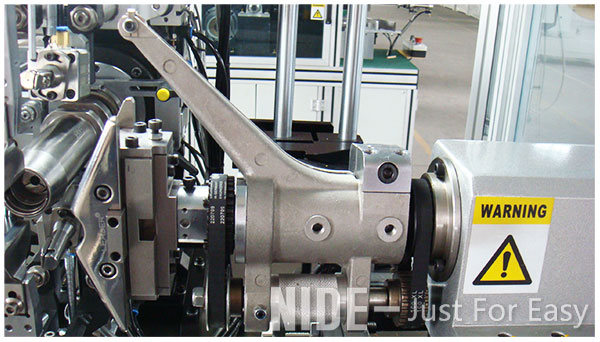

    3. The Winding machine flying fork display
    armature coil winding machine

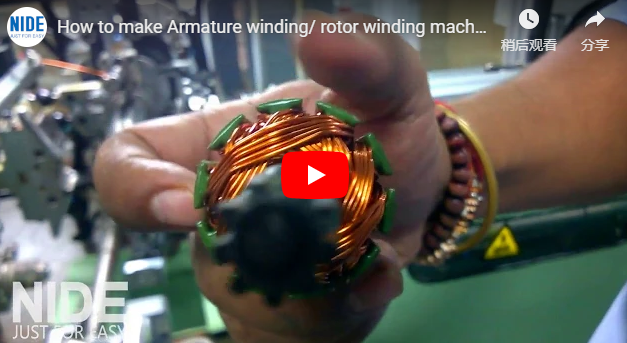

    (7)The armature winding machine video
    automatic motor armature coil winding machine
