| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | None |
| Model Number: | ND-RX51E |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70 sets per year |
| Condition: | New | Certificate: | CCC |
|---|---|---|---|
| Machine Size: | Middle Size | After-Sales Service: | Overseas Service Center Available |
| Voltage: | 3KW | Power: | Phase AC380V |
| Weight: | 350KG | Dimension: | 870X560X160mm |
| Highlight: | armature winding machine suppliers,wire winder machine |
||
Introduction:
The BLDC external armature winding machine is used in industrial and household appliances, such as Exhuast fan motor , hand generator , CD-ROM , DVD-ROM , Radiator fan motor , etc.
This external rotor winding machine adapts Single flyer winding, double stations, automatically wire clamping, manually feeding. The parameter, such as turn No., wire clamping indexing angle, rotor direction, etc., can be set on the HMI. The BLDC motor outer rotor coil winding machine has remote diagnosis function.
Specification:
| Product name : | Exhuast fan motor BLDC rotor coil winding machine |
| Max. speed : | 2000rpm(no-load) |
| rated speed: | 700rpm |
| Air pressure: | 0.4~0.7Mpa |
| Voltage: | 3KW |
| Power: | phase AC380V |
| Dimension: | 870X560X1600(LXWXH) |
| Weight: | 350KG |

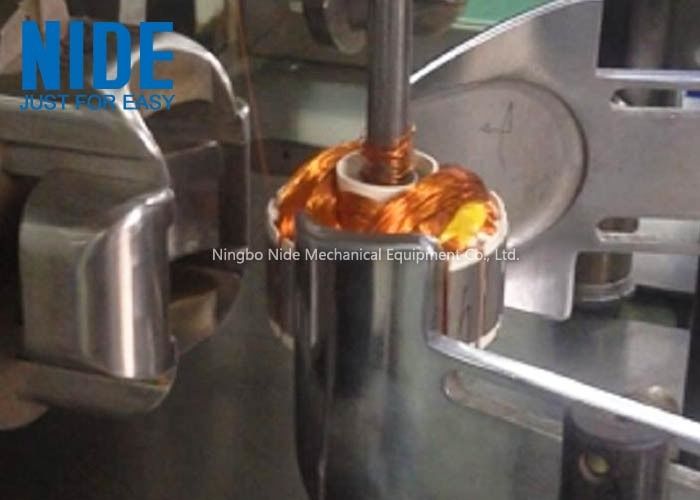

Picture display:
The BLDC external armature winding machine working process :
