6kw Od 20 - 60 Mm Armature Turning Machine Single Cutter For Outer Surface Turning

6kw Od 20 - 60 Mm Armature Turning Machine Single Cutter For Outer Surface Turning

    • 6kw Od 20 - 60 Mm Armature Turning Machine Single Cutter For Outer Surface Turning
    • 6kw Od 20 - 60 Mm Armature Turning Machine Single Cutter For Outer Surface Turning
    • 6kw Od 20 - 60 Mm Armature Turning Machine Single Cutter For Outer Surface Turning
  • 6kw Od 20 - 60 Mm Armature Turning Machine Single Cutter For Outer Surface Turning

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: None
    Model Number: ND-LHL-QSFA-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiable
    Packaging Details: Wooden case suitable for sea transportation
    Delivery Time: 45 working days
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Machine Power: 6KW Color: Customize
    Condition: New Shaft Length: 50~250 Mm
    Machine Weight: About 1100Kg Armature OD: 20~60 Mm

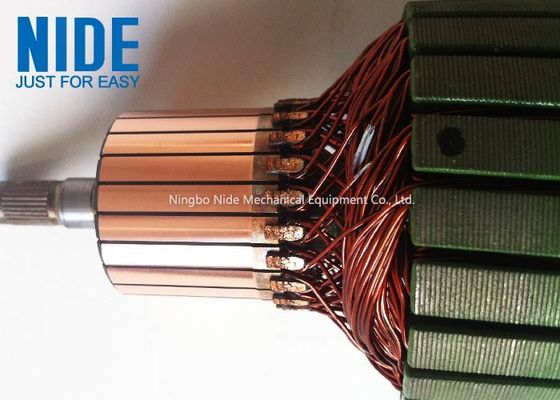

    Armature Turning machine used for armature commutator outer surface turning
    Features and Application:
    1. The turning machine is used for armature commutator outer surface turning
    2. Single cutter , can turn more than one time
    3. Positive knife
    4. Three-axis servo control
    5. Belt vertical pressing down mechanism
    6. Loading and unloading: manual loading and unloading
    7. The armature commutator turning machine is suitable for continuous production of three shifts.
    8. An actuator can be moved in any state of production or standby, automatic and step operations can be inter-converted.
    9. Manual loading/unloading production armature.
    Function:
    1. Turning can be set between 1 and 4 cuts, and the parameters can be set separately: turning amount, cutting speed, belt speed, etc
    2. The oil pump fills V-block with oil automatically and quantitatively. The touch screen controls the lubrication time and refueling times
    3. It can be used for component debugging or control of single actuator under production condition. Single operation, automatic operation and step operation can be converted to each other
    4 .Remind operators to replace vulnerable parts: turning tool, V block and belt
    5. Allow fine adjustment of the Angle between the belt and rotor shaft
    6. Total 100 rotor turning parameters can be saved in HMI.
    7. The current parameters are displayed dynamically while production: shift output, cumulative output, production timing, etc
    8. Abnormal operation has automatic alarm: touch screen alarm, buzzer alarm and alarm light alarm
    Main specification:

    NameParameter
    Armature ODФ20~Ф60 mm
    Armature stack length10~100 mm
    Shaft length50~250 mm
    Length of shaft at commutator end6~80 mm
    Shaft diameter at commutator endФ3~Ф12 mm
    Commutator diameterФ12~Ф42 mm
    Commutator roundness≤0.003mm
    Commutator bar-bar roundness≤0.002mm
    surface roughnessRa 0.4 ~ Ra 1.0
    Maximum cutting amountMax 0.12mm for the first cutting
    Armature speed regulation rangeMax 3000rpm
    Z direction Feeding speedStepless adjustable
    Z direction cutting return speednon-adjustable
    Z direction cutting length4 different turning lengths can be set
    Z direction strokeMax 40mm
    X direction cutter feeding speedStepless adjustable
    X direction cutting return speednon-ajustable
    X direction feeding accuracyMin 0.002mm
    Cutter compensation volumeMin 0.002mm
    Rotor rotation during turningpositive
    Air pressurePressure 4~6kg/cm2
    V-block materialArtificial PCD diamonds
    Turning tool materialArtificial PCD diamonds
    Turning tool typeWide blade
    Machine power6KW
    PowerAC380V 50/60Hz
    Machine weight About 1100Kg
    Workpiece operation height950mm±50
    Production efficiency2200-2500pcs/shift
    Dimension1100mmx 900mmx1600mm
