Place of Origin: | china |
Brand Name: | nide |
Certification: | none |
Model Number: | ND-LHL-QSFA |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | NEGOTIABLE |
Packaging Details: | Wooden case which is suitable for sea transport |
Delivery Time: | 60 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 600 SETS PER YEAR |
Name: | Electric Motor Commutator Turning Machine | Color: | Customize |
---|---|---|---|
Conditon: | New | Control: | PLC+servo Motor |
Highlight: | rotor turning machine,armature turning machine |

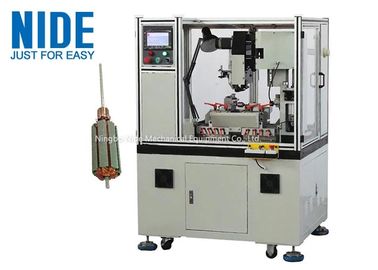

NIDE CNC electirc motor commutator turning machines for armature rotor with PLC
(1) Main technical data of armature electirc motor commutator turning machine
Product Name | ND-LHL-QSFA1electirc motor commutator turning machine |
Armature diameter limit | 20~85mm |
Roundness between bars | ≤0.0015-0.0025mm |
Concentricity | ≤0.0025-0.0035mm |
Shaft length limit | 32~200mm |
Armature shaft diameter limit | 3~17mm |
Commutator OD limit | 12~40mm |
Weight each cutting | Max 0.20mm |
Speed frequency limit | 0~90Hz |
Control | PLC system |
Cutting speed | PLC adjustable |
Efficiency | Cycle≤10s per pc |
Surface roughness | ≤Ra 0.40 |
Fixture | Diamond V block |
Air pressure | 4~6kg/cm2 |
Frequency | 50/60Hz |
Motor Power | 2.5KW |
Voltage | AC220V±10% |
Machine dimension | 850mm x 950 mm x 1830mm |
Mchine Weight | 1100Kg |
(2)Applications of armature electirc motor commutator turning machine
The rotor electric motor commutator turning machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
(3) Machine function and characteristic of armature electirc motor commutator turning machine
Equipped with lubrication device and aluminum alloy frame, this commutator turning machine features advance technology and modern shape, has easy operation system and self-checking system.
Meanwhile, this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control. Cutter feeding and cutting is controlled by servo motor.
Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block. Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking
The armature commutator turning machine video
