|Place of Origin:
|Minimum Order Quantity:
|Wooden case suitable for sea transportation
|45 working days
|180 sets per year
|PLC And Touch Screen
automatic turning machine,
rotor turning machine

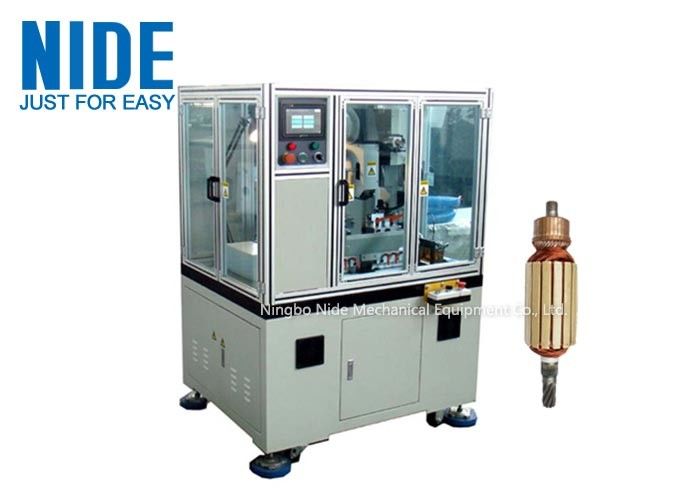

Servo double cutter Commutator Turning Machine
1, Servo double cutter Commutator Turning Machine is used for commutator turning, it is equipped with double cutters, commutator deburring equipment and dust collection.
2, The cutter moves in axial or radial direction. It is driven by three spindle servo motor.
3, Three spindle servo motor controlling ensures the stable and precise cutter feeding.
4, PLC and touch screen control.
5, Cutter feeding and cutting is controlled by servo motor.
Roundness between bars
Armature diameter range
Shaft length range
Armature shaft diameter range
Commutator O.D. range
Weight each cutting
Speed frequency range
Cycle≤10s per pc
Diamond V block
850mm x 950 mm x 1,830mm
Automatic Commutator Turning Machine Servo Control Double Cutters
ND-LHL-QSFA Servo double cutters commutator turning machine is suitable for turning commutator. With advanced design, good shape and high performance, this machine adopts servo control for cutter moving and turning. Mechanical parts are imported, thus the machine is high efficiency and strong reliability.

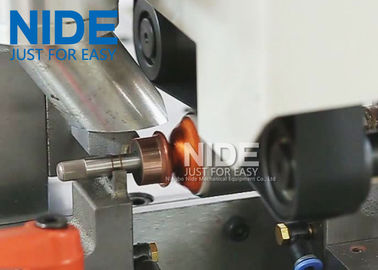

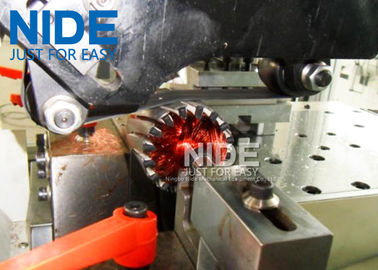

The cutter moving in axial or radial direction is controlled by ball screws which are driven by three spindle servo motor. Turning times(4 times total) and cutter feeding value(≥1um) could be set up on touch screen according to user’s requirement. Three spindle servo motor controlling ensures the stable and precise cutter feeding.

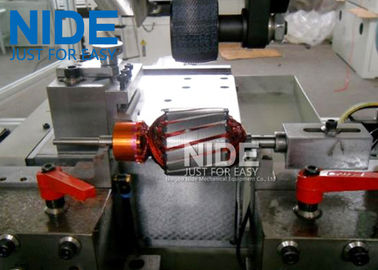

Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block. Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
Meanwhile, this commtator turning machine can be equipped with an automatic feeding device to achieve a fully automatic operation.
This machine is suitable for commutator fusing, it’s widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
This machine is suitable for armature within the specification of the below table.
Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
Meanwhile, this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control. Cutter feeding and cutting is controlled by servo motor.
