Name: | Armture Commutator Turning Machine | Color: | Blue Or Customized |
---|---|---|---|
Conditon: | New | Control: | PLC |
Type: | Fully Automatic | Armature OD.: | 20-85MM |
Commutator OD.: | 12-40MM | Shaft Length: | 32-200MM |
Highlight: | automatic turning machine,rotor turning machine |
Fully auto armature commutator precision turning machine collector turner lathe machine
(1) Machine function and characteristic
Equipped with lubrication device and aluminum alloy frame, this armature commutator turning machine features advance technology and modern shape, has easy operation system and self-checking system.
Meanwhile, this commutator turner can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control the turning lathe. Cutter feeding and cutting is controlled by servo motor.Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block.
(2)Applications:
The rotor commutator turning machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
(3) Main technical data:
Production name: | Fully automatic Motor rotor commutator turning machine |
Concentricity: | ≤0.0025-0.0035mm |
Armature shaft diameter range: | 3~17mm |
Armature diameter range: | 20~85mm |
Commutator O.D. range: | 12~40mm |
Shaft length range: | 32~200mm |
Roundness between bars: | ≤0.0015-0.0025mm |
Cutting speed: | PLC adjustable |
Weight each cutting: | Max 0.20mm |
Speed frequency range: | 0~90Hz |
Surface roughness: | ≤Ra 0.40 |
Fixture: | Diamond V block |
Control: | PLC system |
Air pressure: | 4~6kg/cm2 |
Efficiency: | Cycle≤10s per pc |
Frequency: | 50/60Hz |
Voltage: | AC220V±10% |
Motor Power: | 2.5KW |
Machine dimension: | 850mm x 950 mm x 1,830mm |
Weight: | 1100Kg |
(4) The commutator turner picture show:
1.The front of the commutator turning machine
2.The Side of the commutator turning machine

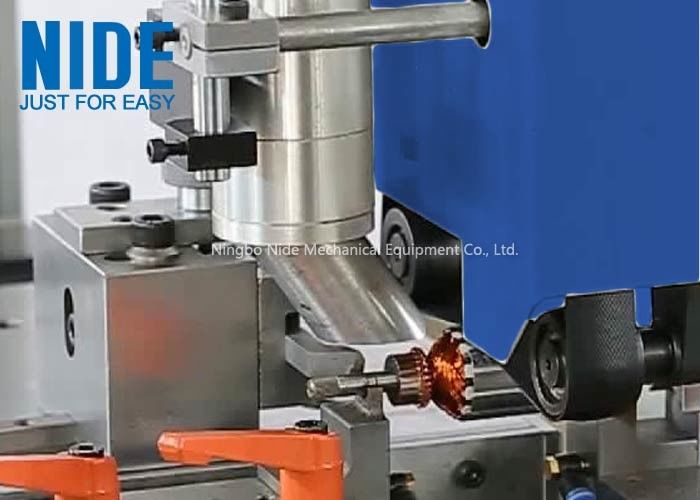

3.The Work area details of the commutator turning machine
