    Name: Armature Winding Machine Used For: Hook Type Commutator Armature Coil Winding
    Color: Light Brown Or Customized Control: PLC
    Sutiable For: Home Appliance, Car And Power Tool Motor Aramture Condition: New
    High Light:

    automatic armature winding machine

    ,

    wire winder machine

    NIDE high-accuracy rotor coil winder manual armature winding machine in delhi





    (1) Application

    The electric motor armture winding machine is suitable for home appliance, car and power tool motor aramture.





    (2) Machine function and characteristic

    This armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding, indexing andwire cutting, only load and unload armature from material loader.

    Equipped with touch screen and PLC, winding parameter could be set and modified on the screen.

    We also have armature winding machine equipped with conveyor, operatoronly need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. We could produce machine according to customer's armature accordingly.





    (3)Technical Parameter:

    Production name: Armature coil winding machine
    Armature O.D range: 20~60mm
    Armature slot: Even slot
    Commutator diameter: 12~40mm
    Wire diameter:

    Magnetic hysteresis method: 0.16~0.55mm/

    Electric control method: 0.30~0.85mm

    Stack length: 20~60mm
    Shaft diameter: 3~17mm
    Shaft length: Less than 300mm
    Turn number: 0~9999
    Winding speed: 0~3000rpm
    Winding motor power: 1.5KW* 2
    Angle detecting speed: 0~3000rpm
    Angle detecting motor power: 0.75KW*1
    Air supply pressure: 4~6Kg/cm2
    The machine total power: 4.0KW
    Voltage: Three phase AC380V50/60Hz
    Dimension: 2000(length)X1300(width)X1800(height)mm
    Weight: 1200Kg

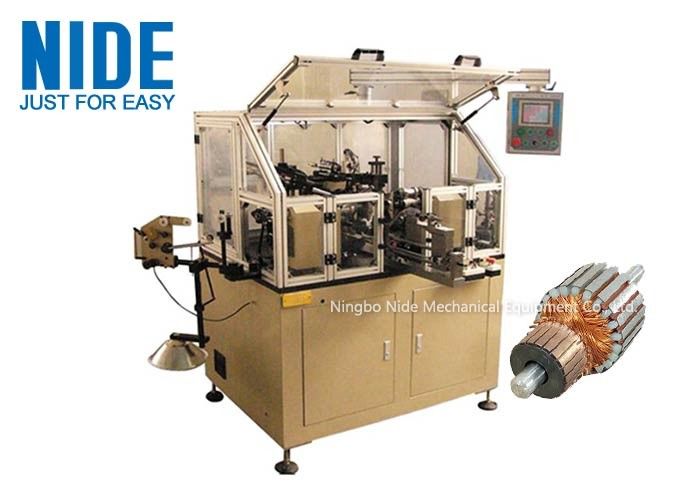

    (4)The coil winding machine picture show
