    Product Details:

    Place of Origin: China
    Brand Name: NIDE
    Certification: CE
    Model Number: ND-LAW-5B22

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Suitable for sea transportation
    Delivery Time: 40 working days
    Payment Terms: L/C, T/T
    Supply Ability: 180 sets per year
    Contact Now
    Detailed Product Description
    Name: Armture Coil Winding Machine Color: Gray Or Customized
    Armature: Even Number Slot Rotor Control: PLC
    Powder: AC 380V Speed: MAX 3000rpm
    High Light:

    automatic armature winding machine

    ,

    wire winder machine

    Automatic motor Armature coil winding machine





    (1) Application

    The motor rotor coil winding machine is suitable for home appliance, car and power tool motor aramture.





    (2) Machine function and characteristic

    This armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding, indexing andwire cutting, only load and unload armature from material loader.

    Equipped with touch screen and PLC, winding parameter could be set and modified on the screen.

    We also have armature winding machine equipped with conveyor, operatoronly need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. We could produce machine according to customer's armature accordingly.





    (3)Technical Parameter:

    Production name: Automatic armature coil winding machine
    Wire diameter:

    Magnetic hysteresis method: 0.16~0.55mm/

    Electric control method: 0.30~0.85mm

    Armature O.D range: 20~60mm
    Stack length: 20~60mm
    Shaft diameter: 3~17mm
    Shaft length: Less than 300mm
    Armature slot: Even number slot
    Turn number: 0~9999
    Commutator diameter: 12~40mm
    Winding speed: 0~3000rpm
    Winding motor power: 1.5KW* 2
    Angle detecting speed: 0~3000rpm
    Angle detecting motor power: 0.75KW*1
    Air supply pressure: 4~6Kg/cm2
    The machine total power: 4.0KW
    Voltage: Three phase AC380V50/60Hz
    Dimension: 2000(length)X1300(width)X1800(height)mm
    Weight: 1200Kg





    (4)Common malfunction of this machine
    Sometimes, there is servo alarm displayed on the touchscreen. In this case, there will be error code displayed on the servo driver(at the backside of machine), you could identify the problem according to the error code. The most common malfunction is the encoder cable which connects the servo driver and servo motor is loose, just need remove and reinsert the encoder cable again, problem will be solved.



    (5)The operation steps of this machine
    Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.



    (6)The rotor winding maching picture show

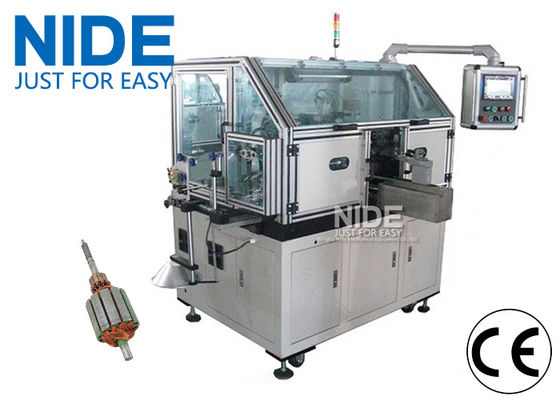

    1. the coil winding machine Surface structure

    Motor Coil Winder Armature Winding Machine 380v In Gray / Customized Color 0
    2.The rotor winding machine Internal structure

    Motor Coil Winder Armature Winding Machine 380v In Gray / Customized Color 1
    3.The rotor windingn machine parts display

    Motor Coil Winder Armature Winding Machine 380v In Gray / Customized Color 2

    The armature winding machine video

     https://youtu.be/BCR3m_1tSIU

    automatci armature winder flyer coil winding machine

    Motor Coil Winder Armature Winding Machine 380v In Gray / Customized Color 4
